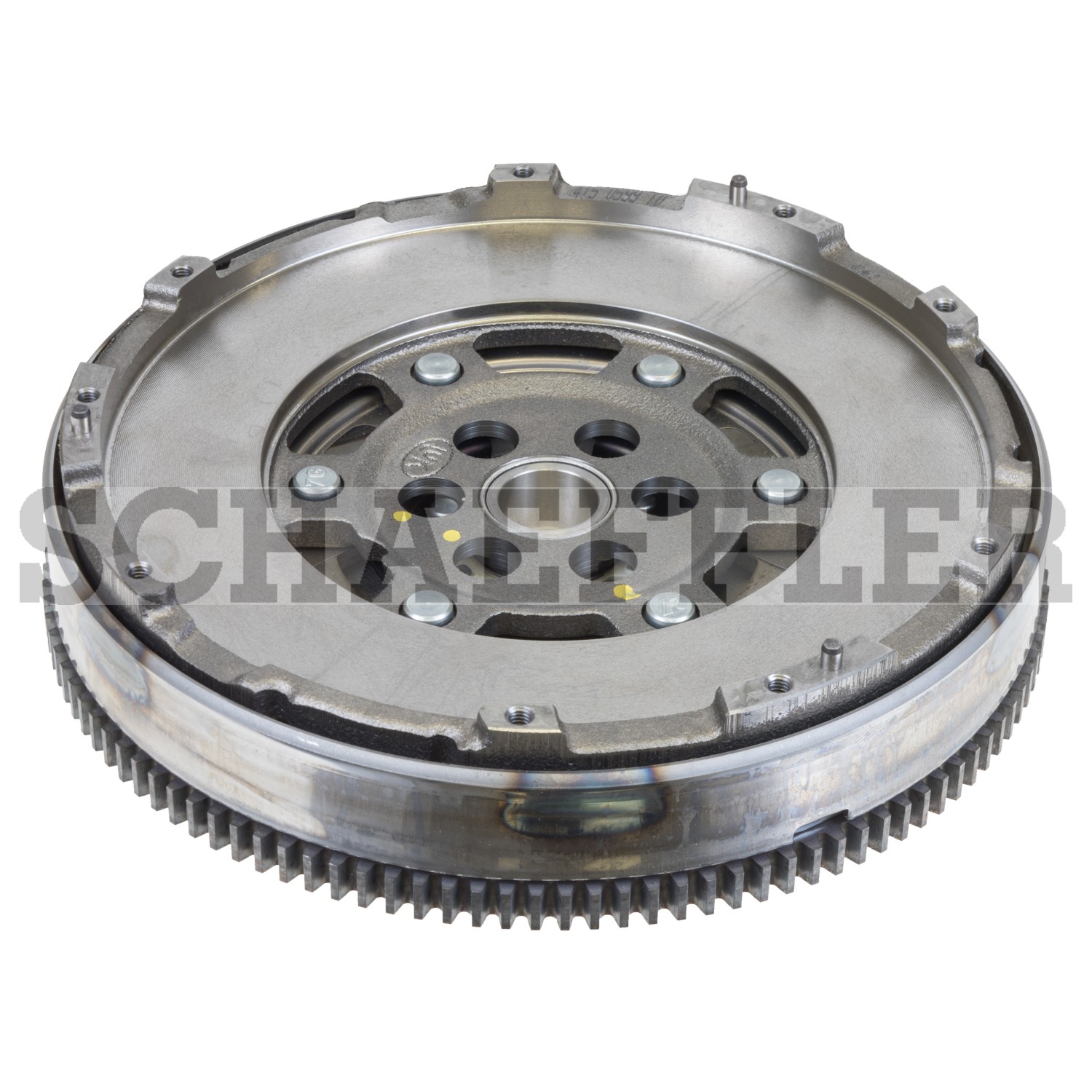

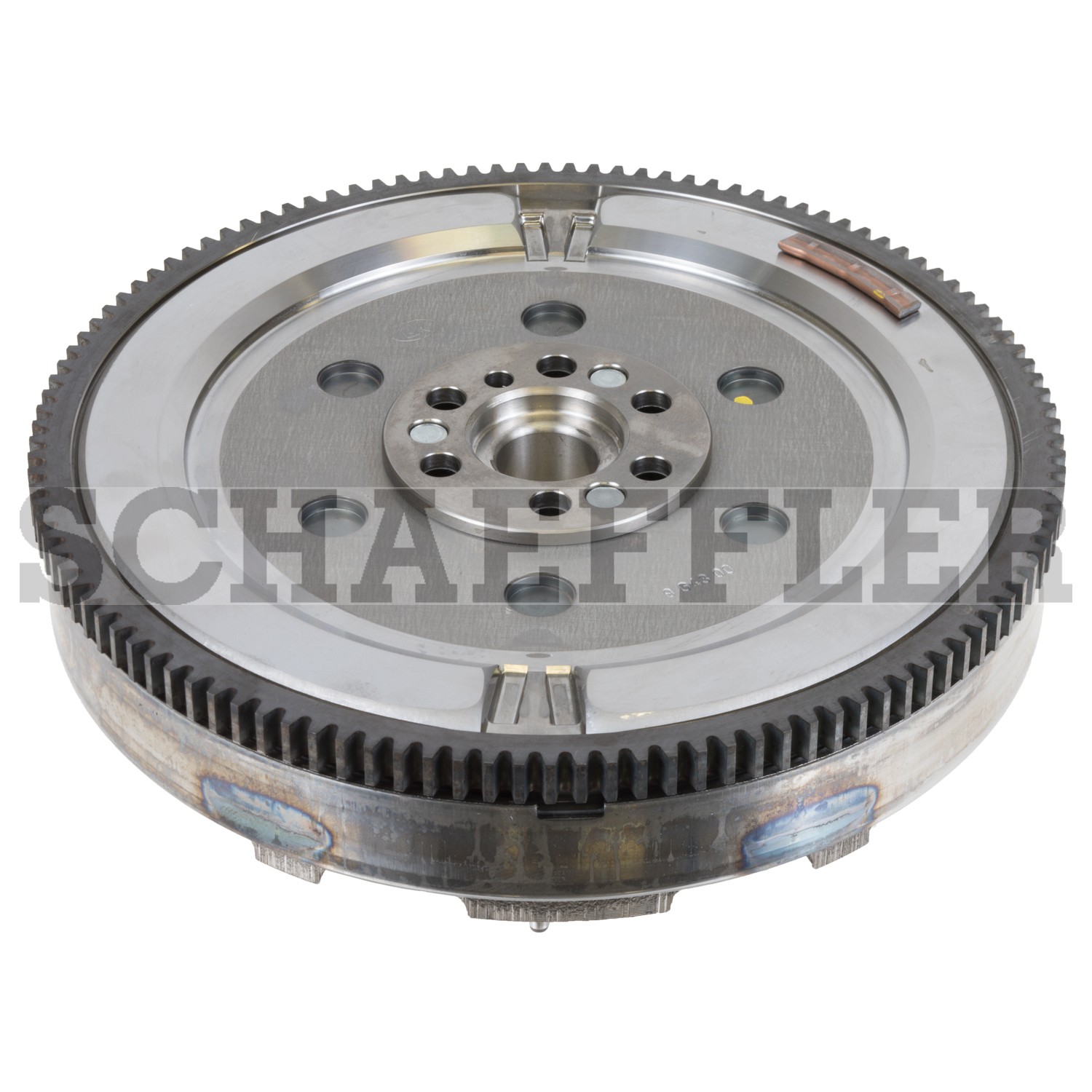

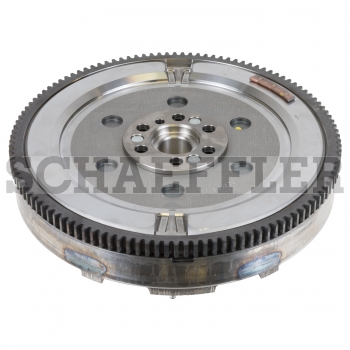

LUK® DMF186 Clutch Flywheel
Manufacturer #DMF186
LUK® DMF186 Clutch Flywheel
Manufacturer #DMF186
$338.43
$473.80
Save $135.37 (29%)
(15) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
E.P.A. Compliant Converters are not legal for sale or use in California or Colorado. Restrictions apply in New York and Maine.
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | LKDMF186 |
|---|---|
| Brand | LUK® |
| Part Name | Clutch Flywheel |
| Part | # DMF186 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Fiat
- LuK DMF Manu
- LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.
| Flywheel Friction Surface Inner diameter (inch) | 5.748 |
|---|---|
| Flywheel Friction Surface Inner diameter (mm) | 146 |
| Flywheel friction surface outer diameter (inch) | 8.5039 |
| Flywheel friction surface outer diameter (mm) | 216 |
| I.D. for Pilot (inch) | 0.9528 |
| I.D. for Pilot (mm) | 24.2 |
| Dowel hole diameter (inch) | 0.1969 |
| Dowel hole diameter (mm) | 5 |
| Cup depth, secondary flywheel (inch) | -0.5157 |
| Cup depth, secondary flywheel (mm) | -13.1 |
| Overall Casting O.D. (inch) | 10.1339 |
| Overall Casting O.D. (mm) | 257.4 |
| Torque Capacity DMFW (inch) | 11.2205 |
| Torque Capacity DMFW (mm) | 285 |
| Bolt hole PCD clutch pres.plte (inch) | 9.0945 |
| Bolt hole PCD clutch pres.plte (mm) | 231 |
| Crank To Friction Surface (inch) | 1.563 |
| Crank To Friction Surface (mm) | 39.7 |
| Dowel Hole Pattern | 5 |
| Number of teeth, starter ring gear | 118 |
| Flywheel Thickness [mm] (inch) | 2.6102 |
| Flywheel Thickness [mm] (mm) | 66.3 |
| Ring Gear Mounting O.D. (inch) | 9.2146 |
| Ring Gear Mounting O.D. (mm) | 234.05 |
| Ring Gear Number | L-08180-0g11-03 |
| Centering diameter / dowel hole (inch) | 9.0945 |
| Centering diameter / dowel hole (mm) | 231 |
| Ring Gear Thickness (inch) | 0.4331 |
| Ring Gear Thickness (mm) | 11 |
| Bolt hole PCD crankshaft (inch) | 2.3228 |
| Bolt hole PCD crankshaft (mm) | 59 |
| Ring Gear To Friction Surface (inch) | 1.5945 |
| Ring Gear To Friction Surface (mm) | 40.5 |
| Crank Hole Dia. (inch) | 0.3858 |
| Crank Hole Dia. (mm) | 9.8 |
| Ring Gear Major Dia. (inch) | 9.833 |
| Ring Gear Major Dia. (mm) | 249.759 |
