Monroe® RS55274 Suspension Shock Absorber
Manufacturer #RS55274
Monroe® RS55274 Suspension Shock Absorber
Manufacturer #RS55274
$64.45
$90.23
Save $25.78 (29%)
(42) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
E.P.A. Compliant Converters are not legal for sale or use in California or Colorado. Restrictions apply in New York and Maine.
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | TSRS55274 |
|---|---|
| Brand | Monroe® |
| Part Name | Suspension Shock Absorber |
| Part | # RS55274 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Chevrolet
-
Dodge
-
Gmc

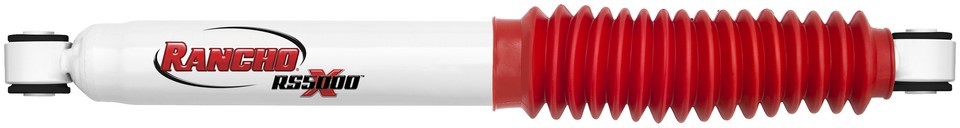

- RS5000X Suspension Shock Absorber
- Rancho RS5000X RS55274 Suspension Shock Absorber for Dodge Ram 1500
- Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
| Compressed Length (IN) | 16.19 |
|---|---|
| Compressed Length (MM) | 411.2 |
| Extended Length (IN) | 26.44 |
| Extended Length (MM) | 671.6 |
| Travel Length (IN) | 10.25 |
| Travel Length (MM) | 260.4 |
| Shock Stroke (IN) | 10.25 |
| Shock Stroke (MM) | 260.4 |
| Lower Mount Type | Loop bushing and sleeve mount - 9/16' sleeve id x 1.5/8' sleeve oal |
| Lower Mount Code | Ls47 |
| Upper Mount Type | Loop bushing and sleeve mount - 9/16' sleeve id x 1.5/8' sleeve oal |
| Upper Mount Code | Ls47 |
| Shock Absorber Rod End Measuring Point | Center of loop |
| Shock Absorber Body End Measuring Point | Center of loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Internal Rebound Bumper | No |
| Parts Pack(s) | None |
| Body Diameter (IN) | 2.25 |
| Body Diameter (MM) | 57.2 |
| Cylinder Outside Diameter (IN) | 2.25 |
| Cylinder Outside Diameter (MM) | 57.2 |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Color | White |
| Finish | Painted |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Included | Yes |
| Dust Shield Diameter (IN) | 2.99 |
| Dust Shield Diameter (MM) | 75.9 |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter (IN) | 0.622 |
| Rod Diameter (MM) | 15.8 |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size (IN) | 1.3779527559055118 |
| Shock Absorber Bore Size (MM) | 35 |
| Includes Bump Stop | No |
| Internal Rebound Spring | No |
| Hydraulic Lockout | No |
| Grade Type | Performance |
| Type | Telescopic |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance (IN) | 0 |
| Maximum Ride Height Raising Distance (IN) | 0 |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Adjustable Damping | No |
| Internal Construction Type | Twin tube |
