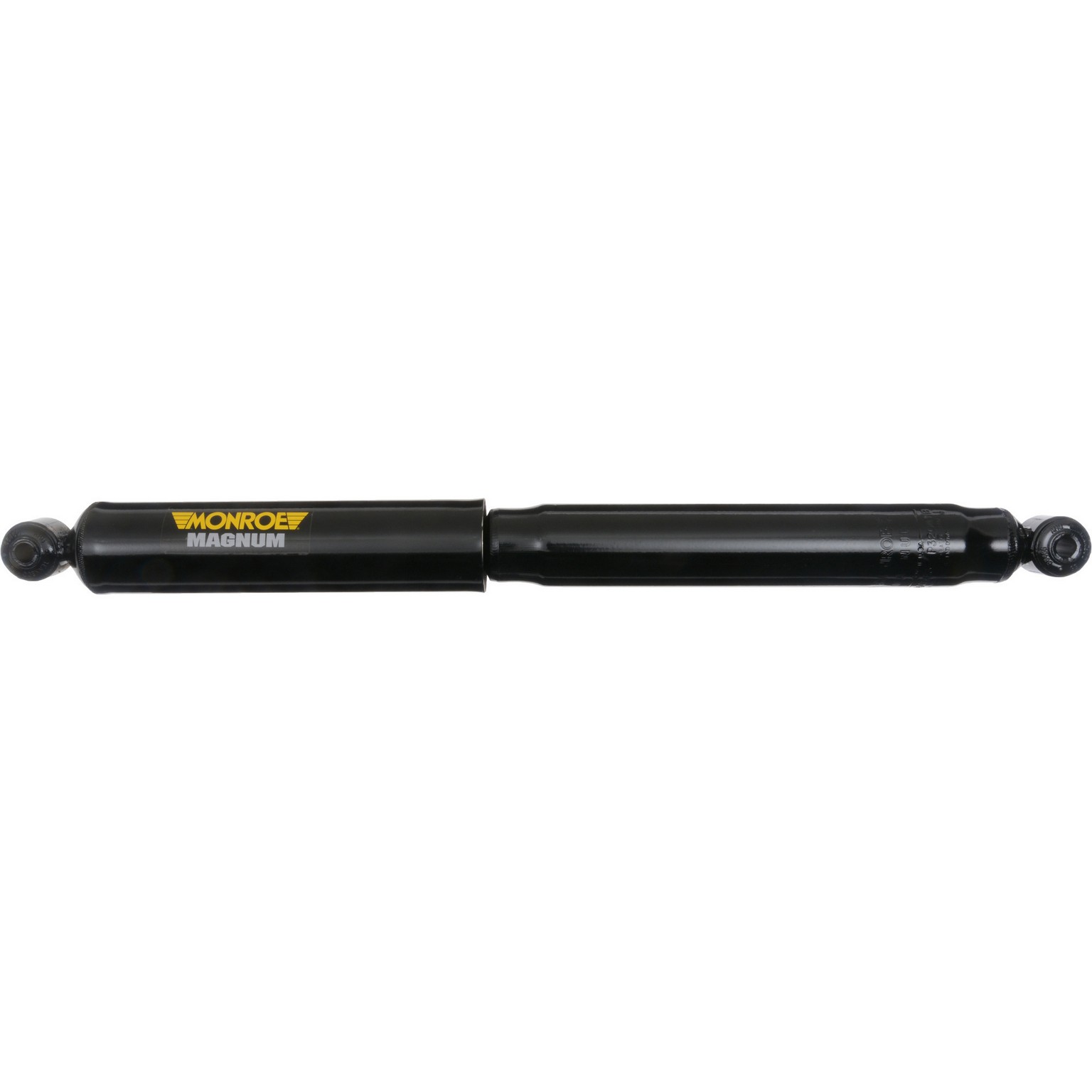

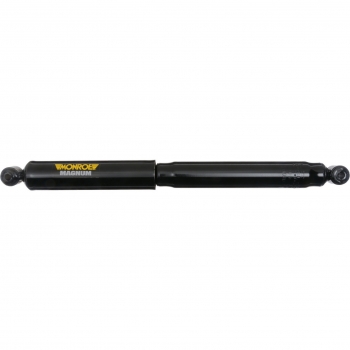

Monroe® 550063 Suspension Shock Absorber
Manufacturer #550063
Monroe® 550063 Suspension Shock Absorber
Manufacturer #550063
$55.66
$77.92
Save $22.26 (29%)
(36) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | TS550063 |
|---|---|
| Brand | Monroe® |
| Part Name | Suspension Shock Absorber |
| Part | # 550063 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Ford
-
Lincoln
- Magnum Light Truck Rear Suspension Shock Absorber
- Monroe Magnum Light Truck 550063 Rear Suspension Shock Absorber for Ford F-150
- Severe Service™ Ride Control products are engineered for emergency, municipal fleet and construction uses. These gas-charged, extra-durable Monroe® shock absorbers feature strengthened components for superior stability and ride control in the toughest applications. Durable Severe Service™ shock absorbers have a larger bore for greater working capacity and arc-welded mounts for higher tensile strength.
- Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
- PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
- Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
- Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
- Loop welding technique: Provide up to 14,100 lbs. (6,395 kg) tensile strength for maximum durability
- 2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
- 1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
- 5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability. Sintered iron design allows for more precise piston dimensions.
- .05-inch pressure tube withstanding pressure of 9KPSI - On most applications
- 10-stage valving: Reacts to wide range of driving conditions - on most applications
| Compressed Length (IN) | 16.54 |
|---|---|
| Compressed Length (MM) | 420.1 |
| Extended Length (IN) | 27.19 |
| Extended Length (MM) | 690.6 |
| Travel Length (IN) | 10.65 |
| Travel Length (MM) | 270.5 |
| Lower Mount Type | Loop bushing and sleeve mount - 12mm sleeve id x 1.9/16' sleeve oal |
| Lower Mount Code | Ls27 |
| Upper Mount Type | Loop bushing and sleeve mount - 12mm sleeve id x 39.69mm sleeve oal |
| Upper Mount Code | Ls27 |
| Shock Absorber Rod End Measuring Point | Center of loop |
| Shock Absorber Body End Measuring Point | Center of loop |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Parts Pack(s) | None |
| Body Diameter (IN) | 2.251 |
| Body Diameter (MM) | 57.2 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Part Description | Shock absorber |
