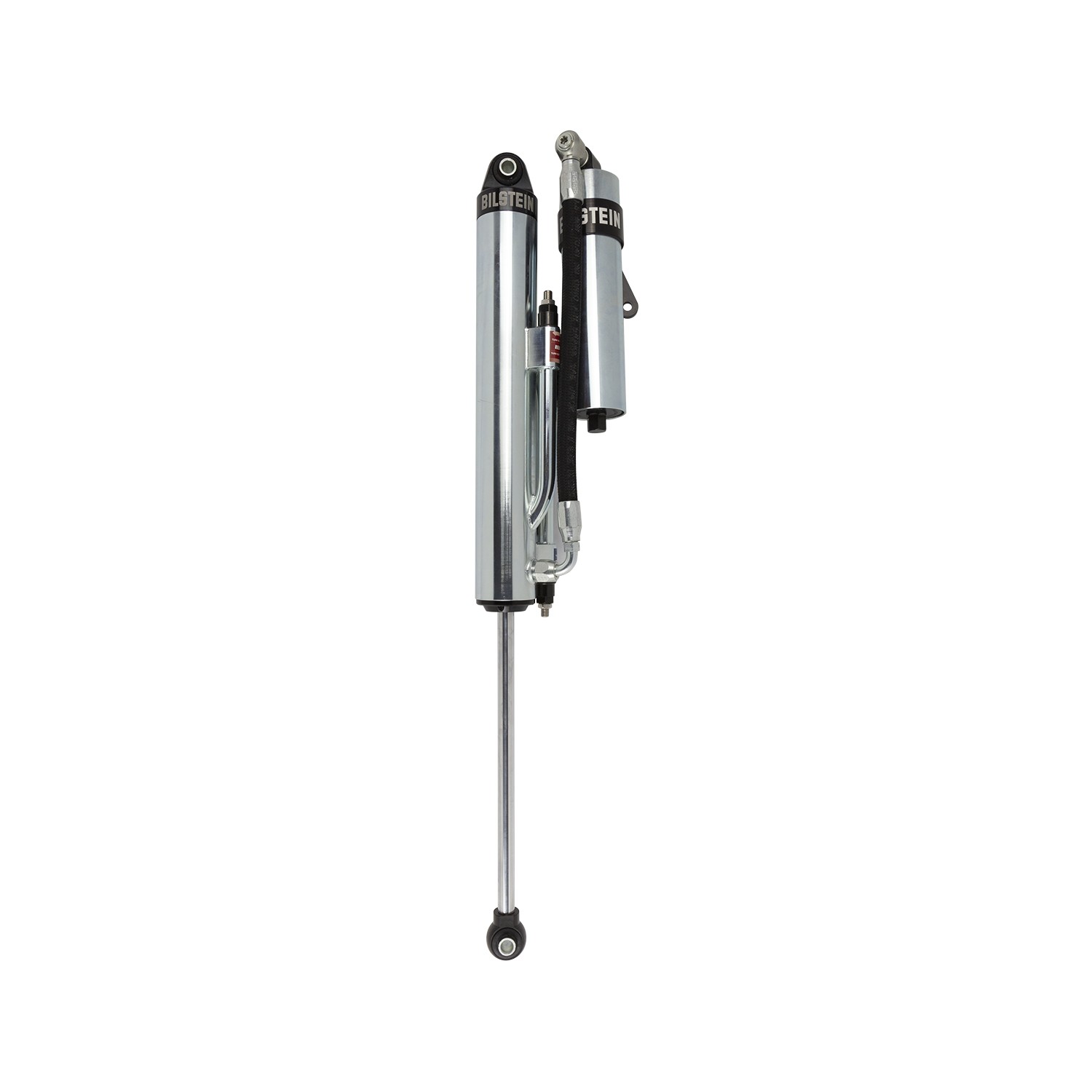

Bilstein® 25-287820 Suspension Shock Absorber
Manufacturer #25-287820
Bilstein® 25-287820 Suspension Shock Absorber
Manufacturer #25-287820
$1,038.02
$1,453.23
Save $415.21 (29%)
(8) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | B525287820 |
|---|---|
| Brand | Bilstein® |
| Part Name | Suspension Shock Absorber |
| Part | # 25-287820 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Jeep
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
- B8 8100 (Bypass) - Suspension Shock Absorber
- 60mm Shock Absorber
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments

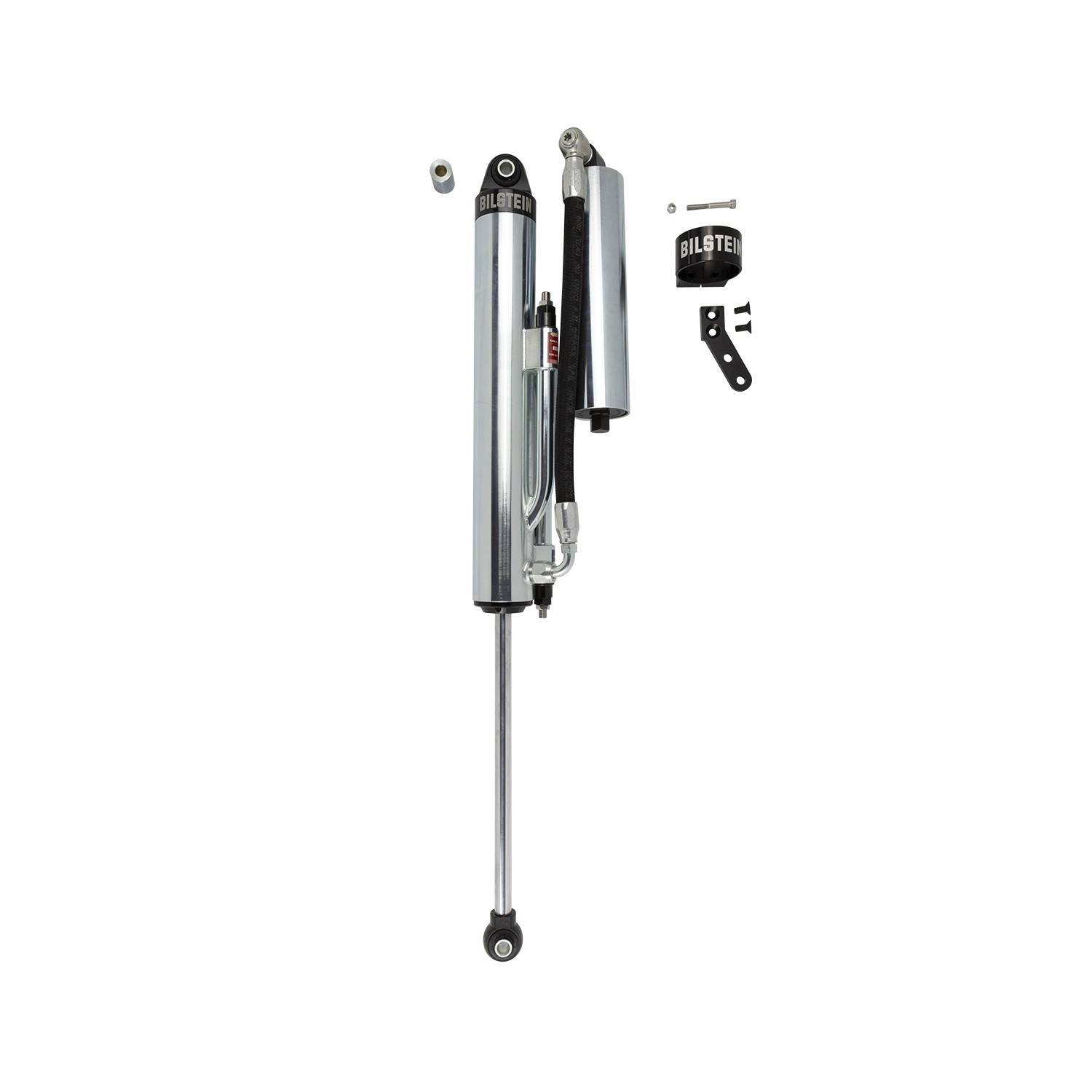

- Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
| Upper Mount Type | Eye 12.8mm |
|---|---|
| Extended Length (IN) | 32.01 |
| Prop 65 (Y/N) | Y |
| Collapsed Length (MM) | 495.0 |
| Segment | Light truck |
| Internal Design | Monotube |
| Finish | Zinc plated |
| Reservoir | Yes |
| Extended Length (MM) | 813.0 |
| Collapsed Length (IN) | 19.49 |
| Lower Mount Type | Eye 12.8mm |
| Adjustable Damping | Double adjustable – compression and rebound |
| Boot Included | No |
| Body Diameter (ID) | 60mm |
| Series | B8 8100 (bypass) |
| Spring Seat Included | No |
| PartType | Shocks / struts |
| Body Design | Bypass body (non-coilover) |
| Title | Bilstein shock absorbers |
| Prop 65 - Short Label | Warning: cancer & reproductive harm - www.p65warnings.ca.gov |
No Applications
