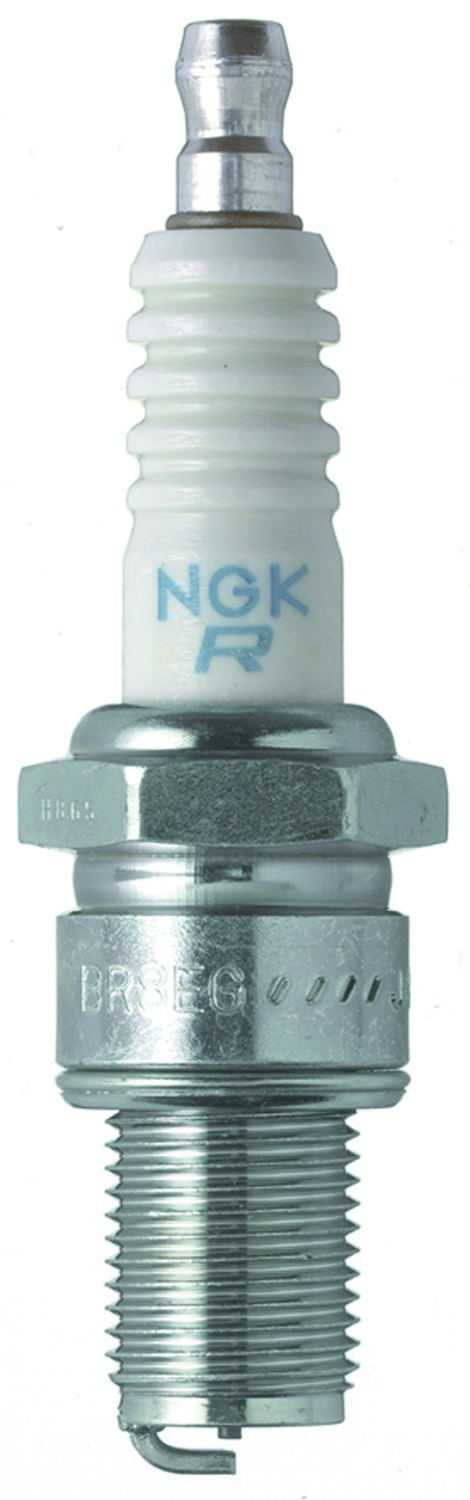

NGK® 3230 Spark Plug
Manufacturer #3230
NGK® 3230 Spark Plug
Manufacturer #3230
$6.22
$8.71
Save $2.49 (29%)
(71) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | NG3230 |
|---|---|
| Brand | NGK® |
| Part Name | Spark Plug |
| Part | # 3230 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
- DESIGNED FOR RACING: Conventional nickel alloy center electrode provides consistent performance
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- NGK Racing Spark Plug
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.
| Part Number | Br9eg |
|---|---|
| Stock Number | 3230 |
| Short Style Spark Plug | No |
| Service Number | Br9eg |
| Resistance (82) | 5000.0 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-gap |
| Ground Electrode Core Material | Nickel |
| Washer Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Removable nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size (IN) | .024 |
| Pre-Gap Size (MM) | 0.6 |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16' |
| Insulator Height (IN) | 2.12 |
| Insulator Height (MM) | 53.8 |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach (IN) | 0.750 |
| Reach (MM) | 19.0 |
| Thread Diameter (IN) | 0.551 |
| Thread Diameter (MM) | 14.0 |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length (IN) | 0.0 |
| Skirt Length (MM) | 0.0 |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection (IN) | 0.04 |
| Center Electrode Insulator Tip Projection (MM) | 1.0 |
| Center Electrode Design | Fine wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-projected |
