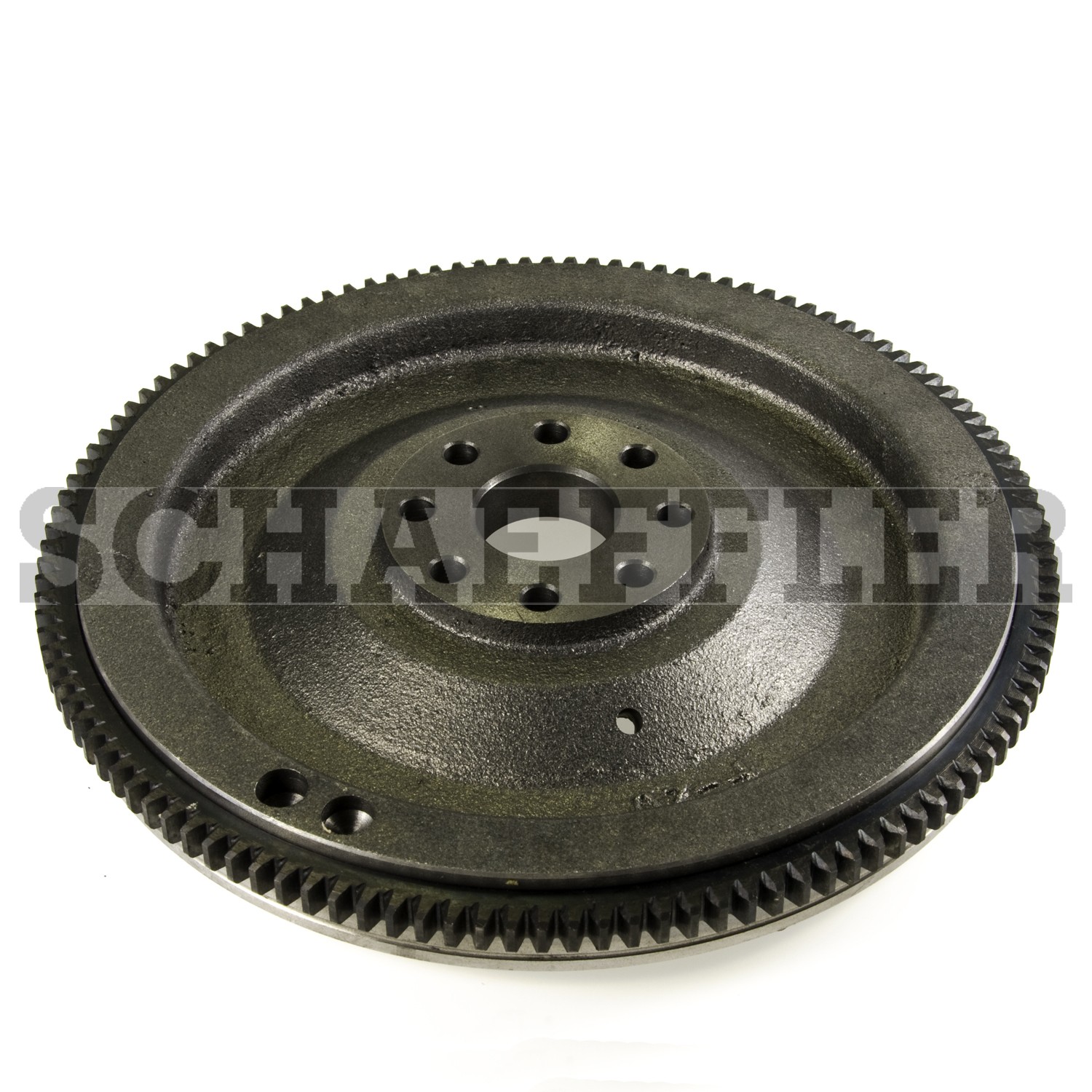

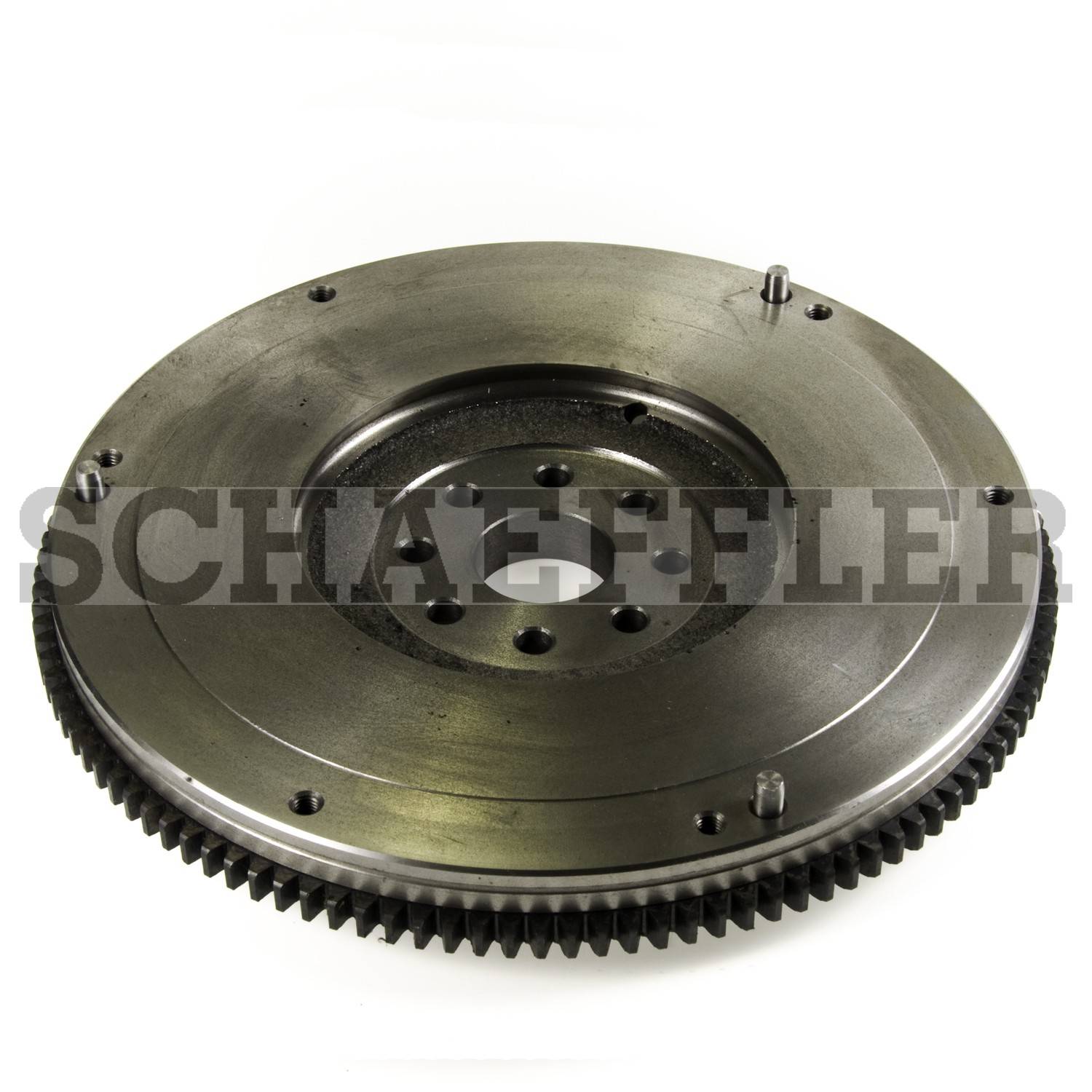

LUK® LFW196 Clutch Flywheel
Manufacturer #LFW196
LUK® LFW196 Clutch Flywheel
Manufacturer #LFW196
$53.48
$74.87
Save $21.39 (29%)
(39) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | LKLFW196 |
|---|---|
| Brand | LUK® |
| Part Name | Clutch Flywheel |
| Part | # LFW196 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Toyota
- LuK Rigid Flywheel
- LuK: New flywheels are a smart alternative! The flywheel is an integral part of clutch replacement. It must provide a smooth, flat surface for proper clutch operation. Pairing your clutch set with a new LuK flywheel is a smart, cost-effective alternative to resurfacing. All new - never remanufactured – every component is engineered and manufactured to OE specifications, including ring gear.
| Bolt hole PCD clutch pres.plte (inch) | 10.5772 |
|---|---|
| Bolt hole PCD clutch pres.plte (mm) | 268.66 |
| Bolt hole PCD crankshaft (inch) | 3.0315 |
| Bolt hole PCD crankshaft (mm) | 77 |
| Flywheel Cup Depth or Step Height (inch) | 0.0197 |
| Flywheel Cup Depth or Step Height (mm) | 0.5 |
| Flywheel Thickness [mm] (inch) | 1.2598 |
| Flywheel Thickness [mm] (mm) | 32 |
| Overall Casting O.D. (inch) | 11.5 |
| Overall Casting O.D. (mm) | 292.1 |
| Ring Gear Mounting O.D. (inch) | 11 |
| Ring Gear Mounting O.D. (mm) | 279.4 |
| Has Dowel Pins | With dowel pins |
| Flange Thickness (inch) | 0.8583 |
| Flange Thickness (mm) | 21.8 |
| Number of teeth, starter ring gear | 120 |
| Dowel Hole Pattern | 5 |
| Ring Gear Major Dia. (inch) | 12.0039 |
| Ring Gear Major Dia. (mm) | 304.9 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Flywheel Friction Surface Inner diameter (inch) | 5.8268 |
| Flywheel Friction Surface Inner diameter (mm) | 148 |
| Crank Hole Dia. (inch) | 0.4134 |
| Crank Hole Dia. (mm) | 10.5 |
| Ring Gear Thickness (inch) | 0.4409 |
| Ring Gear Thickness (mm) | 11.2 |
| Centering diameter / dowel hole (inch) | 10.6465 |
| Centering diameter / dowel hole (mm) | 270.42 |
| Flywheel friction surface outer diameter (inch) | 9.4488 |
| Flywheel friction surface outer diameter (mm) | 240 |
| Ring Gear Chamfer Side | Engine |
| Bolt Hole Pattern | 2 |
| Crank To Friction Surface (inch) | 1.5354 |
| Crank To Friction Surface (mm) | 39 |
| Dowel hole diameter (inch) | 0.315 |
| Dowel hole diameter (mm) | 8 |
| I.D. for Pilot (inch) | 1.6378 |
| I.D. for Pilot (mm) | 41.6 |
