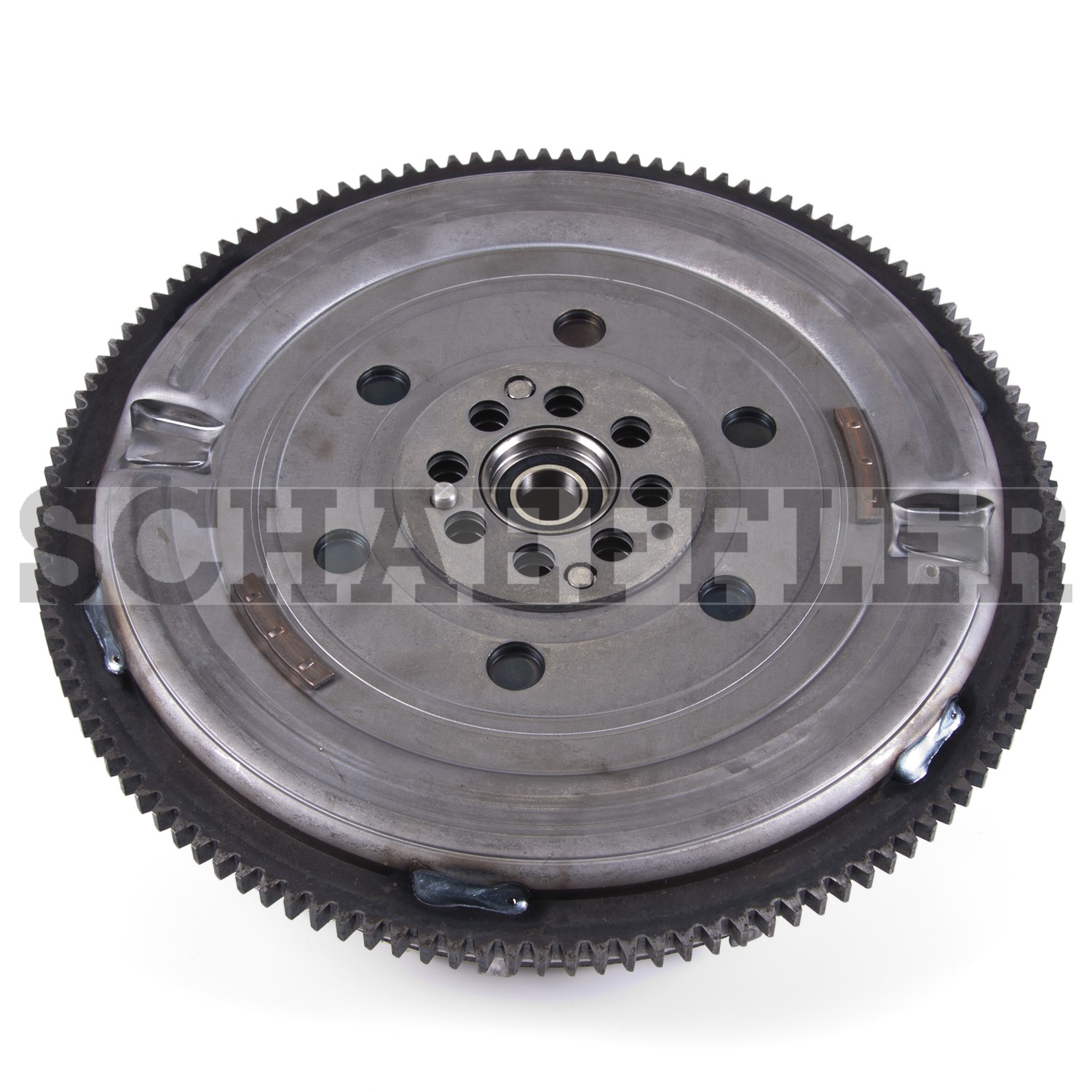

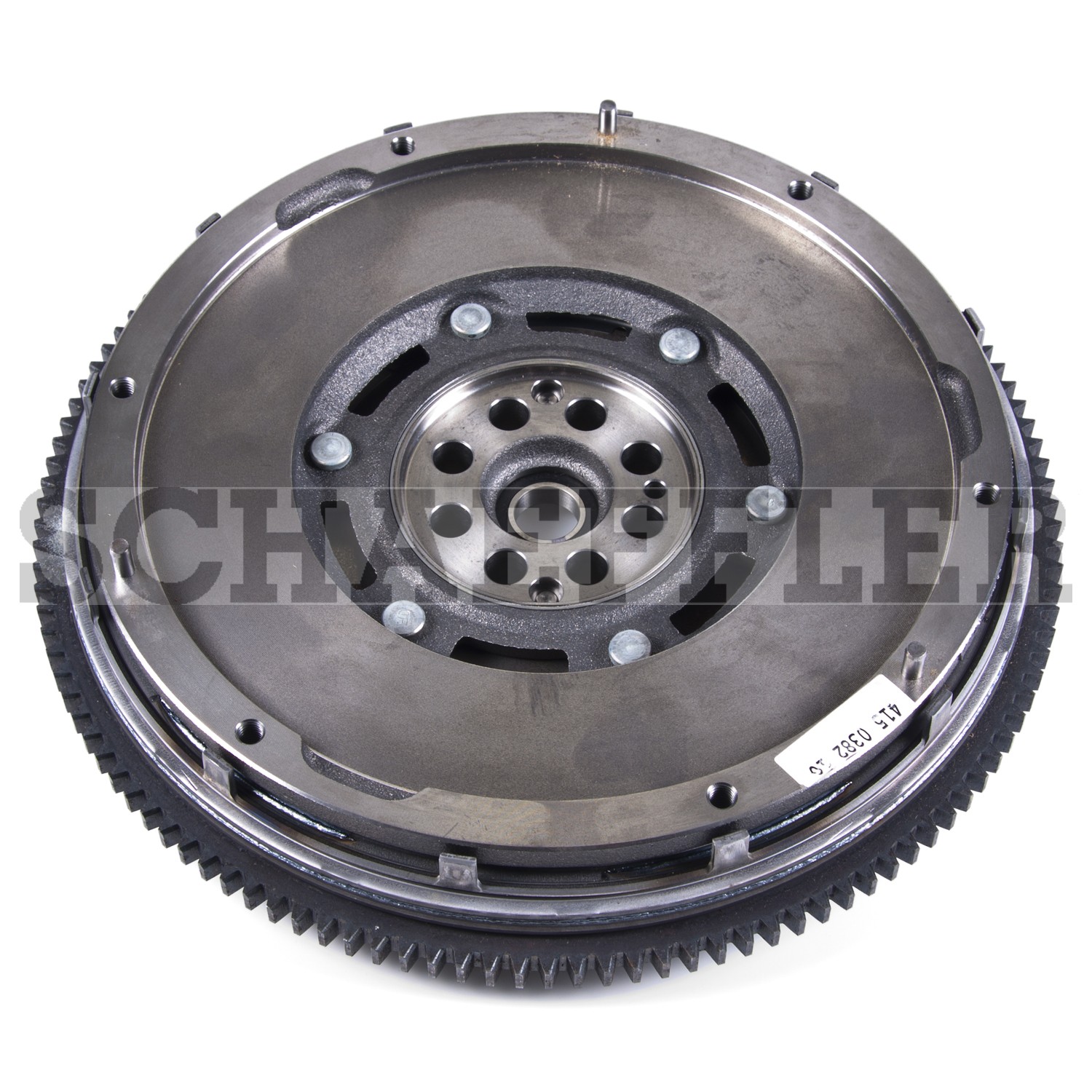

LUK® DMF063 Clutch Flywheel
Manufacturer #DMF063
LUK® DMF063 Clutch Flywheel
Manufacturer #DMF063
$256.39
$358.95
Save $102.56 (29%)
(3) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | LKDMF063 |
|---|---|
| Brand | LUK® |
| Part Name | Clutch Flywheel |
| Part | # DMF063 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Acura
- LuK DMF Manu
- LuK: Don’t gamble – stay with the original LuK DMF! The LuK DMF prevents damages solid flywheels may cause. The LUK Dual Mass Flywheel (DMF) is individually fine-tuned for every type of car. The risks of using solid flywheels are numerous – from increased wear of engine mounts through gearbox failure to damaged crankshafts.
| Ring Gear To Friction Surface (inch) | 1.3701 |
|---|---|
| Ring Gear To Friction Surface (mm) | 34.8 |
| Crank Hole Dia. (inch) | 0.4921 |
| Crank Hole Dia. (mm) | 12.5 |
| I.D. for Pilot (inch) | 14.5669 |
| I.D. for Pilot (mm) | 370 |
| Ring Gear Number | L-09180-0137-00 |
| Bolt hole PCD clutch pres.plte (inch) | 10.2362 |
| Bolt hole PCD clutch pres.plte (mm) | 260 |
| Bolt Hole Pattern | 2 |
| Cup depth, secondary flywheel (inch) | -0.3071 |
| Cup depth, secondary flywheel (mm) | -7.8 |
| Flywheel Thickness [mm] (inch) | 2.689 |
| Flywheel Thickness [mm] (mm) | 68.3 |
| Ring Gear Major Dia. (inch) | 12.3 |
| Ring Gear Major Dia. (mm) | 312.42 |
| Crank To Friction Surface (inch) | 1.8228 |
| Crank To Friction Surface (mm) | 46.3 |
| Ring Gear Thickness (inch) | 0.3543 |
| Ring Gear Thickness (mm) | 9 |
| Flywheel friction surface outer diameter (inch) | 9.4094 |
| Flywheel friction surface outer diameter (mm) | 239 |
| Bolt hole PCD crankshaft (inch) | 2.4803 |
| Bolt hole PCD crankshaft (mm) | 63 |
| Overall Casting O.D. (inch) | 12.4803 |
| Overall Casting O.D. (mm) | 317 |
| Centering diameter / dowel hole (inch) | 10.2362 |
| Centering diameter / dowel hole (mm) | 260 |
| Number of teeth, starter ring gear | 123 |
| Torque Capacity DMFW (inch) | 14.252 |
| Torque Capacity DMFW (mm) | 362 |
| Flywheel Friction Surface Inner diameter (inch) | 6.1024 |
| Flywheel Friction Surface Inner diameter (mm) | 155 |
| Dowel Hole Pattern | 5 |
| Ring Gear Mounting O.D. (inch) | 10.9606 |
| Ring Gear Mounting O.D. (mm) | 278.4 |
| Dowel hole diameter (inch) | 0.2362 |
| Dowel hole diameter (mm) | 6 |
