Arnott® AS-3153 Air Suspension Strut
Manufacturer #AS-3153
Arnott® AS-3153 Air Suspension Strut
Manufacturer #AS-3153
$670.44
$938.62
Save $268.18 (29%)
(18) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | AIAS3153 |
|---|---|
| Brand | Arnott® |
| Part Name | Air Suspension Strut |
| Part | # AS-3153 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Mercedes-benz
- New Air Suspension Strut
- Custom-designed Eibach shock absorber
- Multi-Ply ContiTech Air Sleeve
- Pre-Assembled for Easy Installation
- Detailed Installation Manual Available
- Designed & Assembled in the USA
- Replace in Pairs

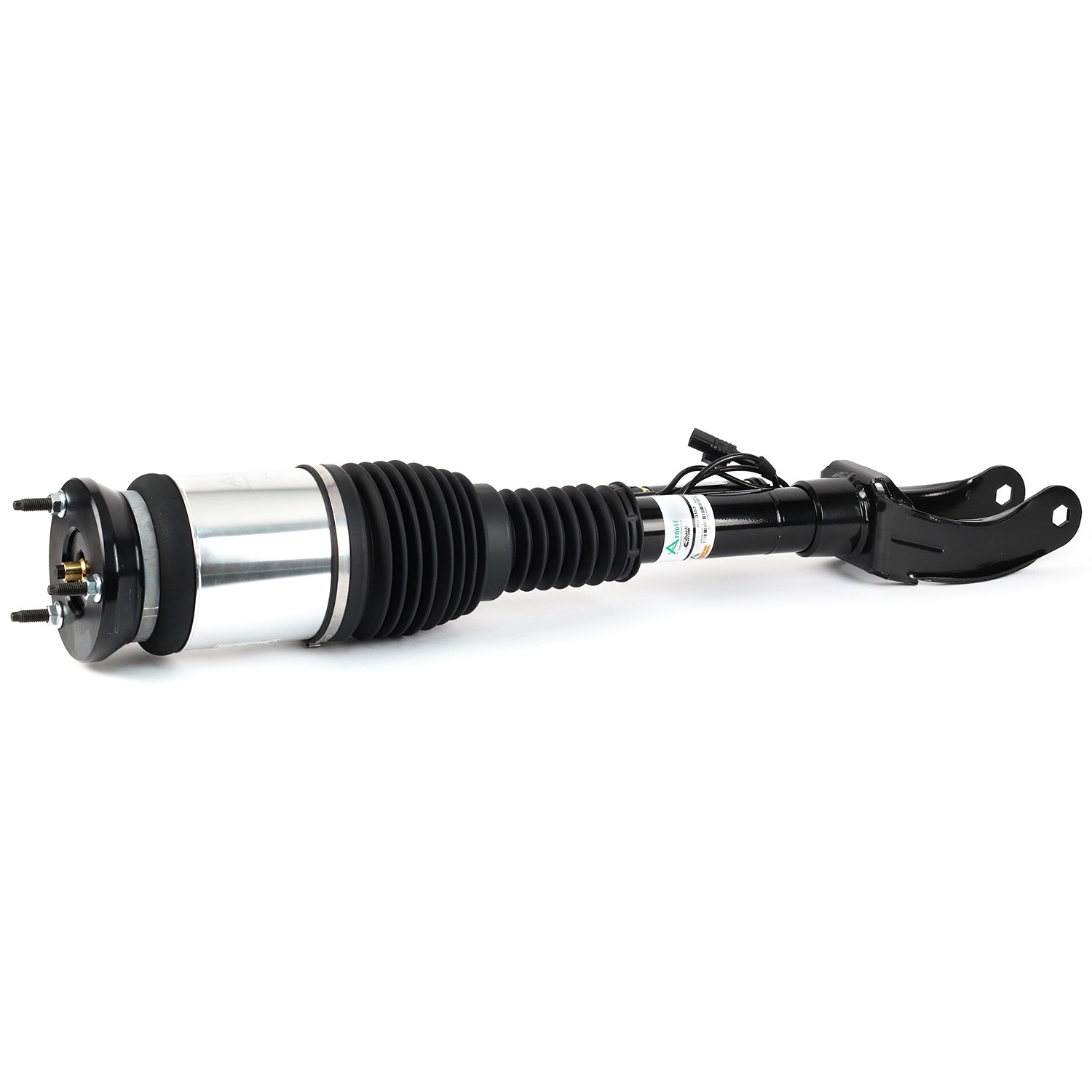

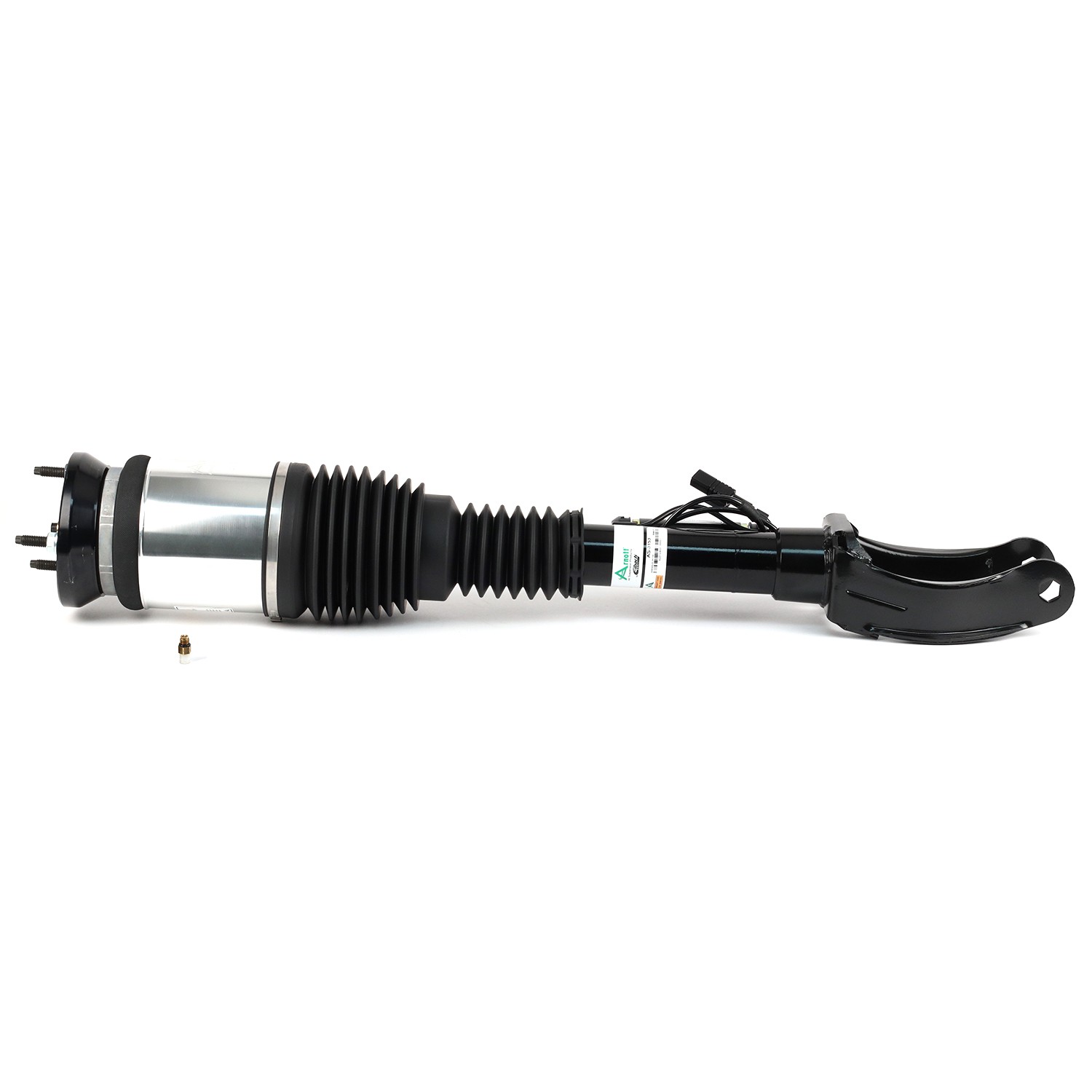

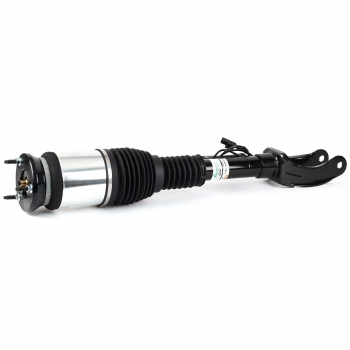

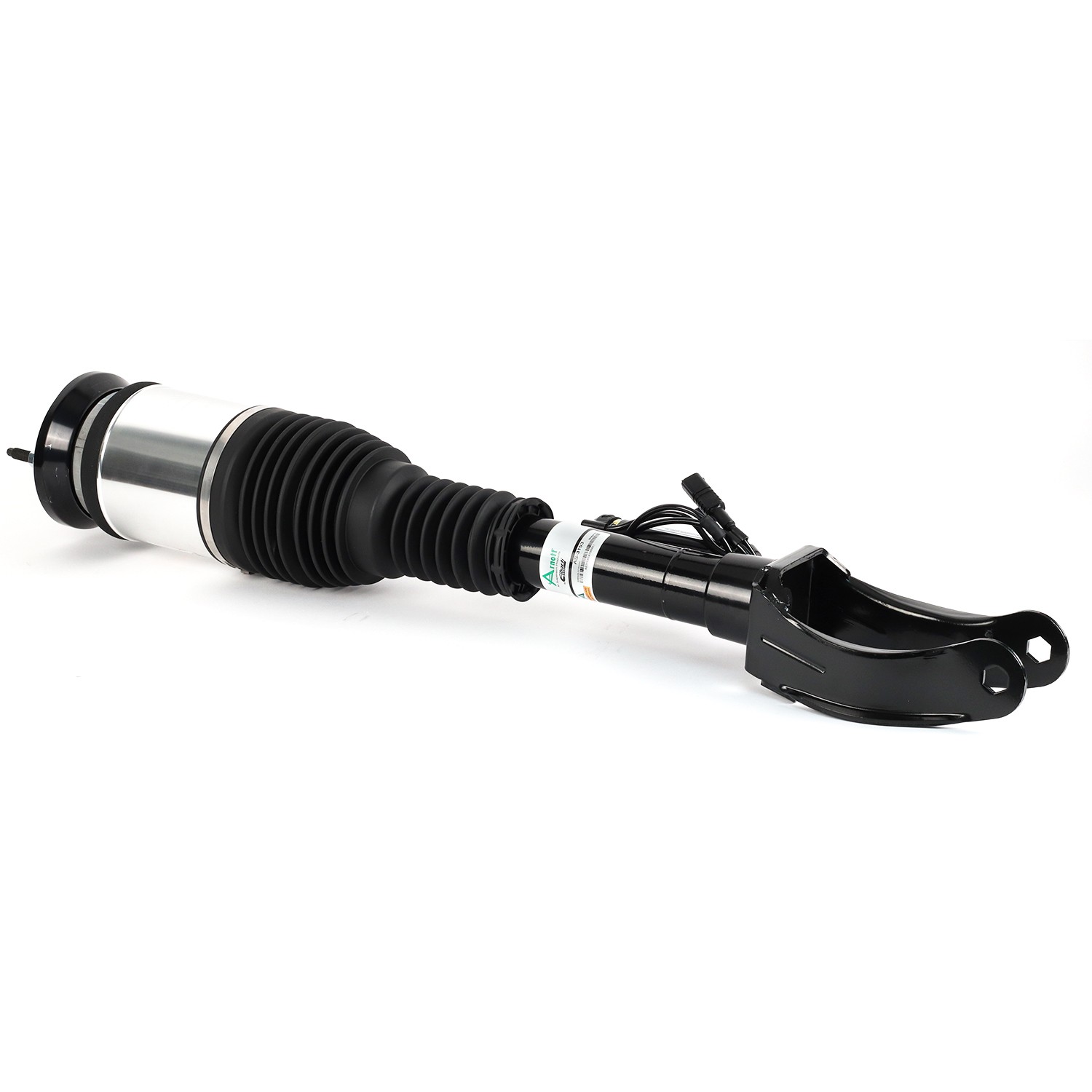

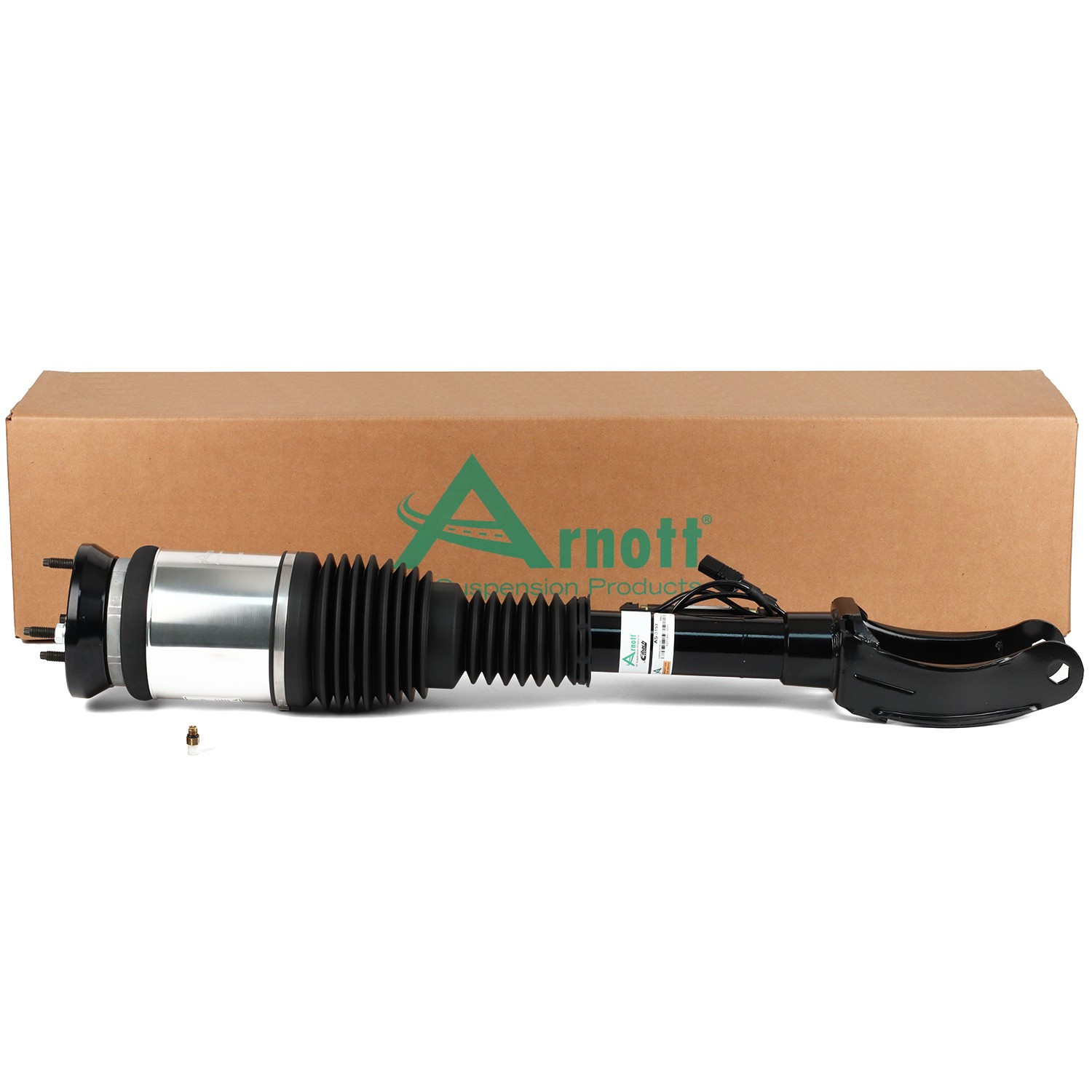

- AS-3153 is a new, Arnott engineered, aftermarket air suspension strut for the front right-hand side of the 2013-19 Mercedes-Benz GL/GLS-Class (X166) and 2012-18 ML/GLE-Class (W166) w/Airmatic and ADS (excluding ADS Plus). This new assembly features a premium Eibach custom-tuned damper designed to provide a comfortable, yet responsive ride. The Arnott strut includes Tier 1 components including a new longer-lasting multi-ply cross corded ContiTech air sleeve. The Sleeve is protected by an aluminum can and dust cover and is coupled with a CNC-machined top mount made from aircraft-quality aluminum. This new air strut is designed and assembled in the USA with Arnott's long-lasting O-rings, bump stop, heavy-duty crimping rings, new airline fitting and connector valve.
| Adjustable Damping | Yes |
|---|---|
| Air Adjustable | Yes |
| Air Ride Suspension | Yes |
| Boot/dust Shield Included | Yes |
| Dust Shield Material | Plastic |
| Heavy Duty Crimping Rings | Yes |
| Lower Mounting Isolator Included | Yes |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | Yes |
| Spring Seat Included | Yes |
| Springs Included | Yes |
| Upper Mount Type | Loop bushing |
| Active or Passive Suspension | Passive |
| Adjustable | Yes |
| Travel Length (MM) | 132.20699999999999 |
| Compressed Length (MM) | 452.5 |
| Extended Length (MM) | 584.7 |
| Contents | Air shock assembly; mounting hardware |
| Boot Color | Black |
| Body End Measuring Point | Center eye |
| Lower Mount Type | Loop bushing |
| Internal Damper Type | Hydraulic |
| Internal Construction Type | Monotube |
| Shock/strut Design | Monotube |
| California Proposition 65 | N/a |
| Coil Over Springs Included | N/a |
| Protective Aluminum Can | No |
| Progressive Spring Rate | Progressive |
| Spring Rate Type | Progressive |
| Air Bladder Material | Rubber |
| Shock Absorber Rod End Measuring Point | Shoulder of stud |
| Grade Type | Standard |
| Air Bladder | Yes |
| Bearing Plate Included | Yes |
| Mounting Hardware Included | Yes |
| Upper Mounting Isolator Included | Yes |
| Gas Charged | Yes |
