Arnott® AS-2894 Air Suspension Strut
Manufacturer #AS-2894
Arnott® AS-2894 Air Suspension Strut
Manufacturer #AS-2894
$669.80
$937.72
Save $267.92 (29%)
(50) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | AIAS2894 |
|---|---|
| Brand | Arnott® |
| Part Name | Air Suspension Strut |
| Part | # AS-2894 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Lexus
- New Air Suspension Strut
- Multi-Ply ContiTech Air Spring Bladder
- Pre-Assembled for Easy Installation
- Fits Left or Right
- Detailed Installation Manual Available
- Replace in Pairs

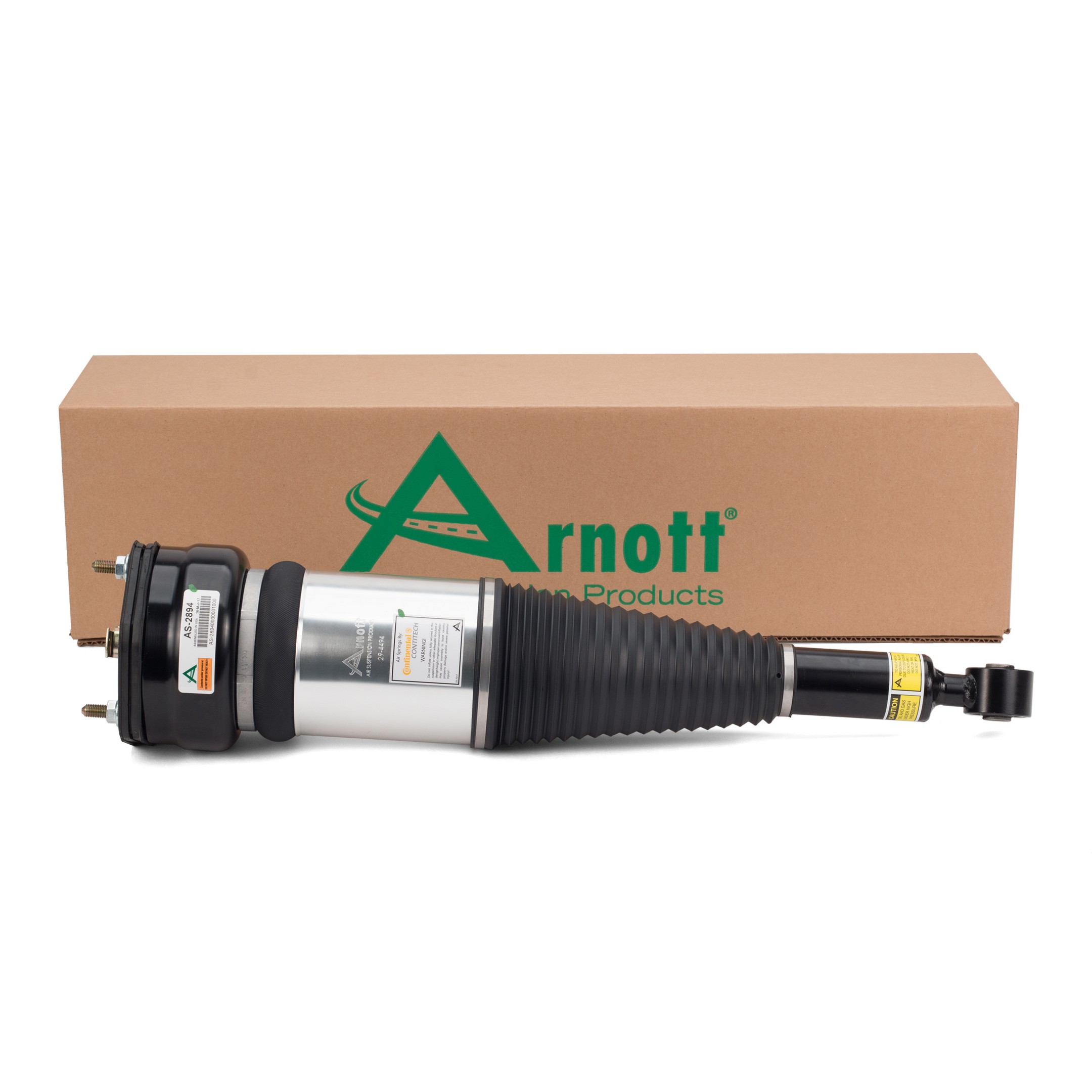

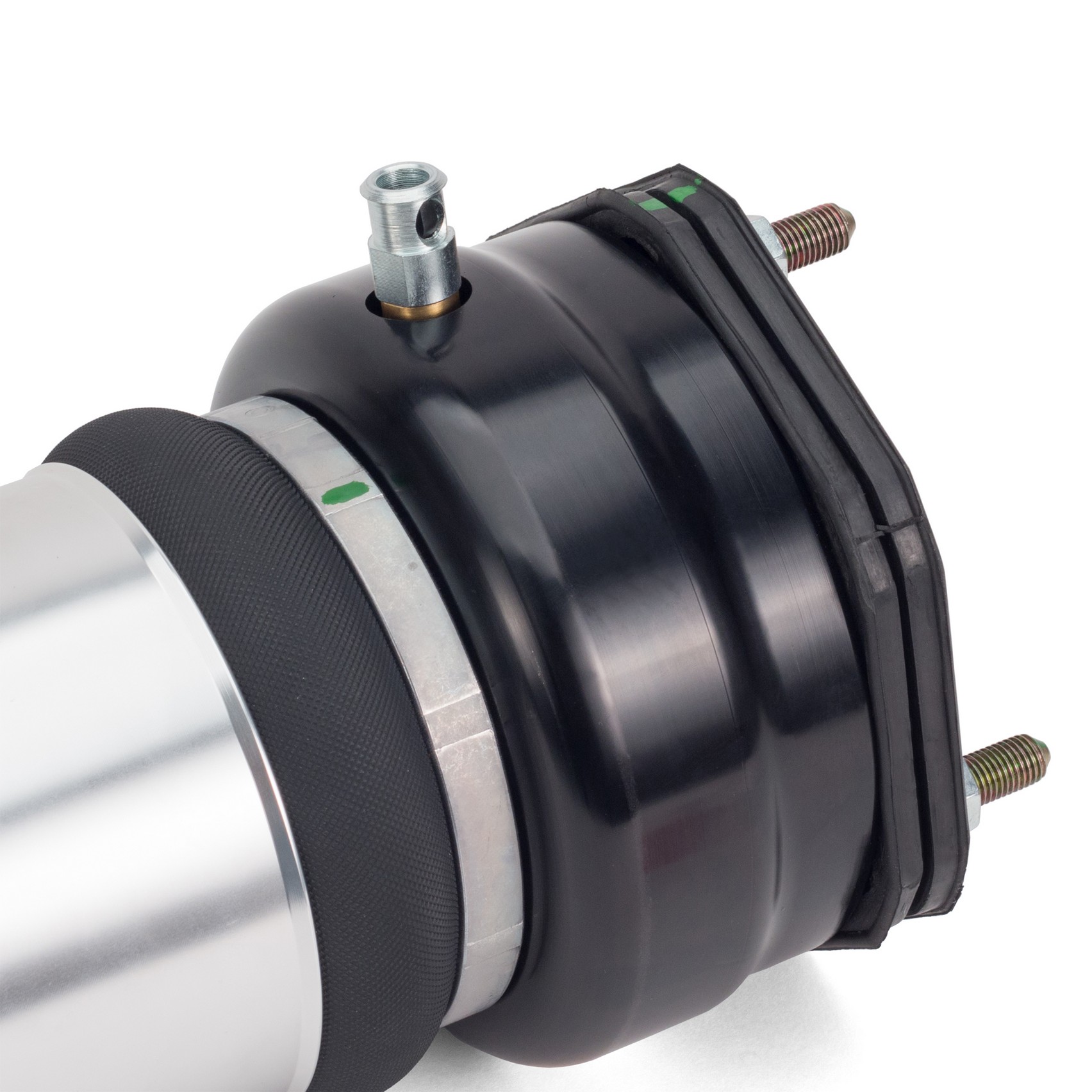

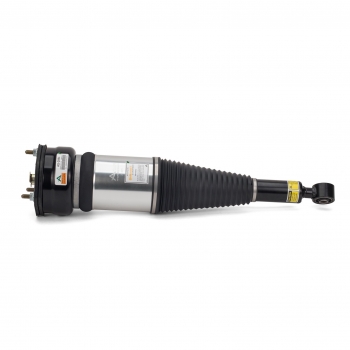

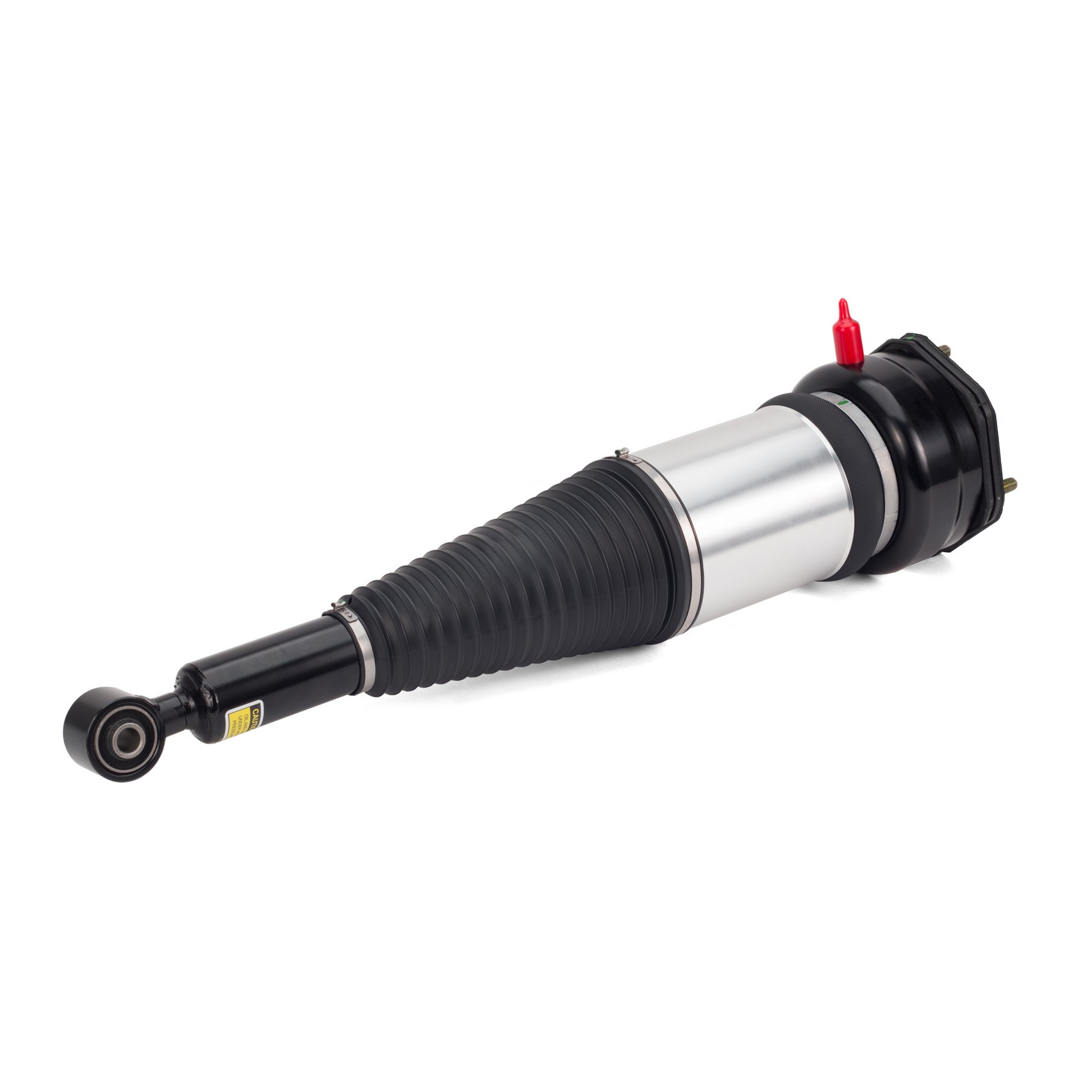

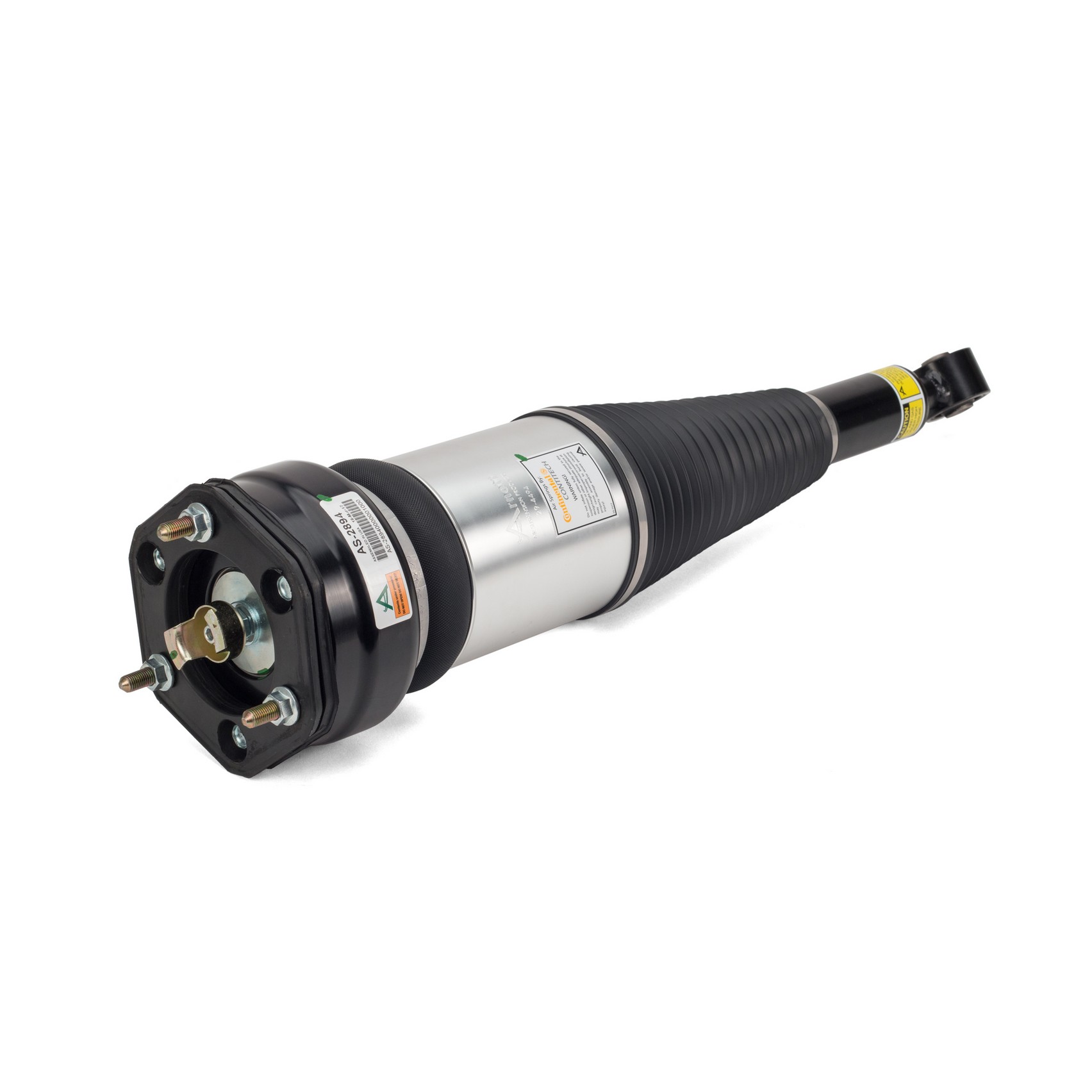

- AS-2894 is an Arnott engineered new air suspension strut for the front right or left of the 2001-2006 Lexus LS 430 (UF30 Chassis) with the Height Adjustable Suspension option including the LS Ultimate Luxury edition. This new assembly replaces the O.E. strut and features a new, not remanufactured, custom- tuned shock absorber valved to provide the luxury ride LS owners expect. The Arnott strut features a new heavy duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum and special rubber coated steel vibration isolator plates. This new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, OE style quick connect air fitting and a dust boot to protect the shock.
| Travel Length (MM) | 135.001 |
|---|---|
| Compressed Length (MM) | 430 |
| Extended Length (MM) | 565 |
| Contents | Air shock assembly; mounting hardware |
| Boot Color | Black |
| Body End Measuring Point | Center eye |
| Internal Damper Type | Hydraulic |
| Lower Mount Type | Loop/eyelet |
| California Proposition 65 | N/a |
| Coil Over Springs Included | N/a |
| Dust Shield Material | N/a |
| Adjustable | No |
| Adjustable Damping | No |
| Bearing Plate Included | No |
| Lower Mounting Isolator Included | No |
| Spring Seat Included | No |
| Progressive Spring Rate | Progressive |
| Spring Rate Type | Progressive |
| Air Bladder Material | Rubber |
| Shock Absorber Rod End Measuring Point | Shoulder of stud |
| Grade Type | Standard |
| Upper Mount Type | Stud |
| Internal Construction Type | Twin-tube |
| Shock/strut Design | Twin-tube |
| Air Adjustable | Yes |
| Air Bladder | Yes |
| Air Ride Suspension | Yes |
| Boot/dust Shield Included | Yes |
| Gas Charged | Yes |
| Heavy Duty Crimping Rings | Yes |
| Mounting Hardware Included | Yes |
| Protective Aluminum Can | Yes |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | Yes |
| Springs Included | Yes |
| Upper Mounting Isolator Included | Yes |
