Arnott® AS-2784 Air Suspension Strut
Manufacturer #AS-2784
Arnott® AS-2784 Air Suspension Strut
Manufacturer #AS-2784
$492.36
$689.30
Save $196.94 (29%)
(12) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | AIAS2784 |
|---|---|
| Brand | Arnott® |
| Part Name | Air Suspension Strut |
| Part | # AS-2784 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Mercedes-benz
- New Air Suspension Strut
- Multi-Ply ContiTech Air Spring Bladder
- Pre-Assembled for Easy Installation
- Detailed Installation Manual Available
- Designed & Assembled in the USA
- Replace in Pairs

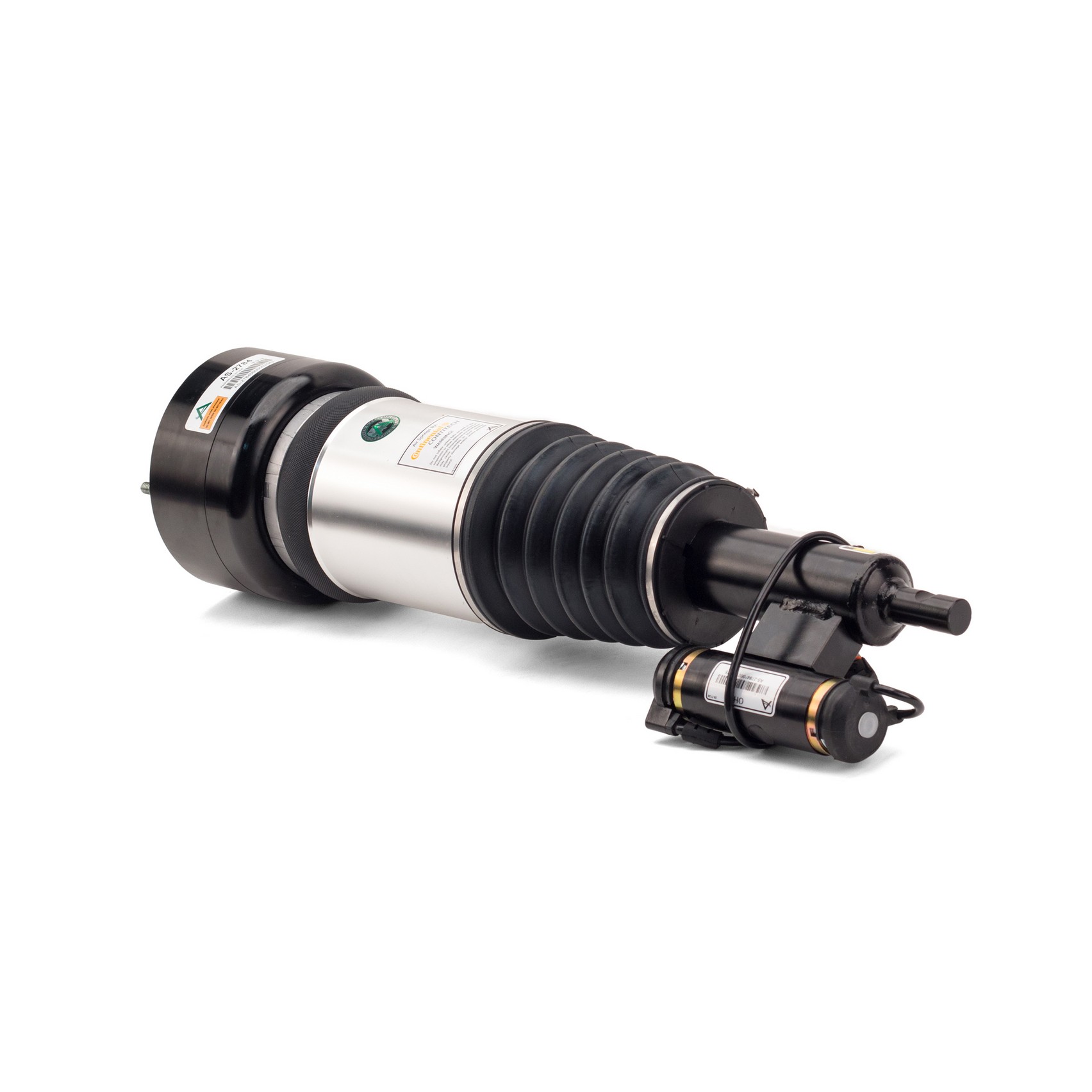

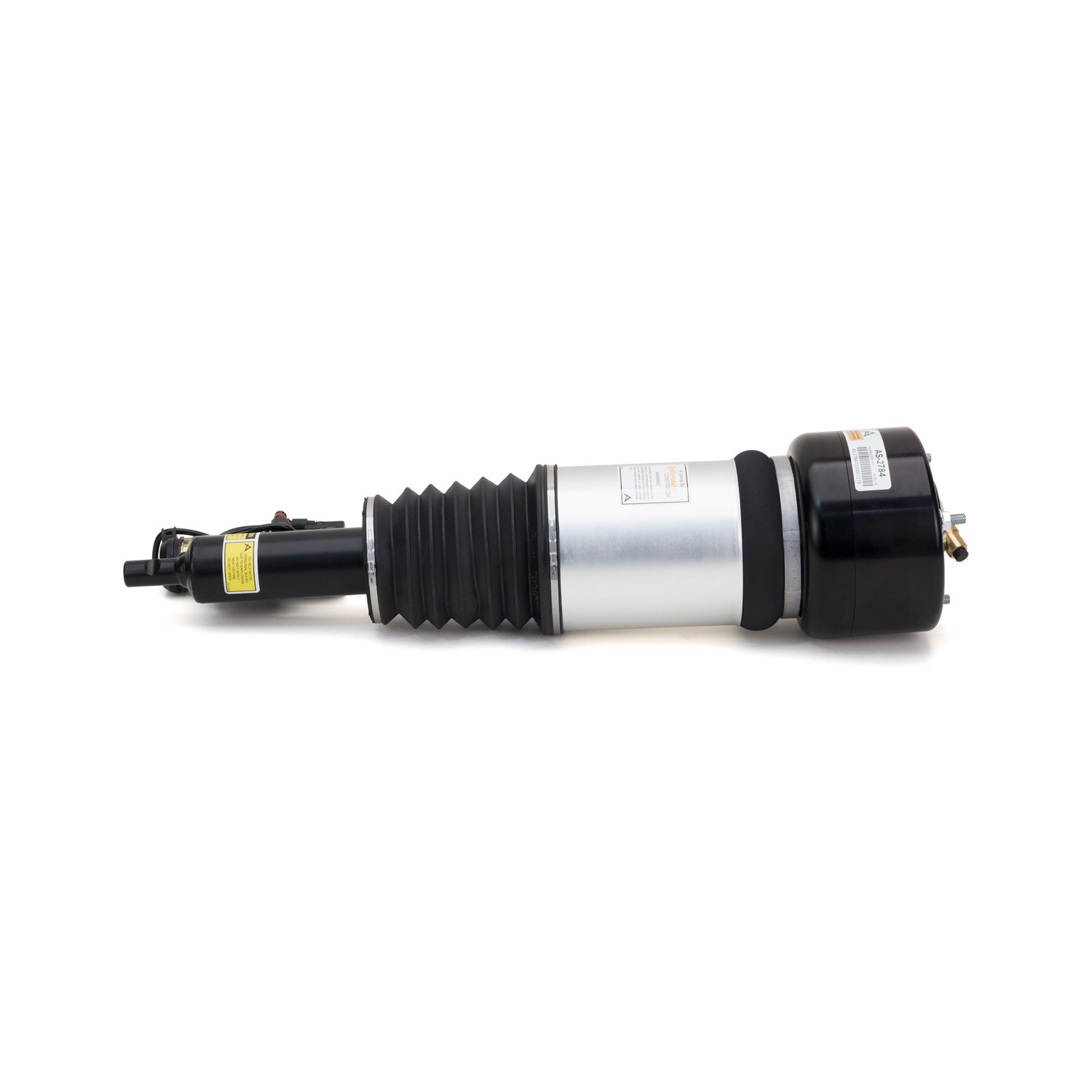

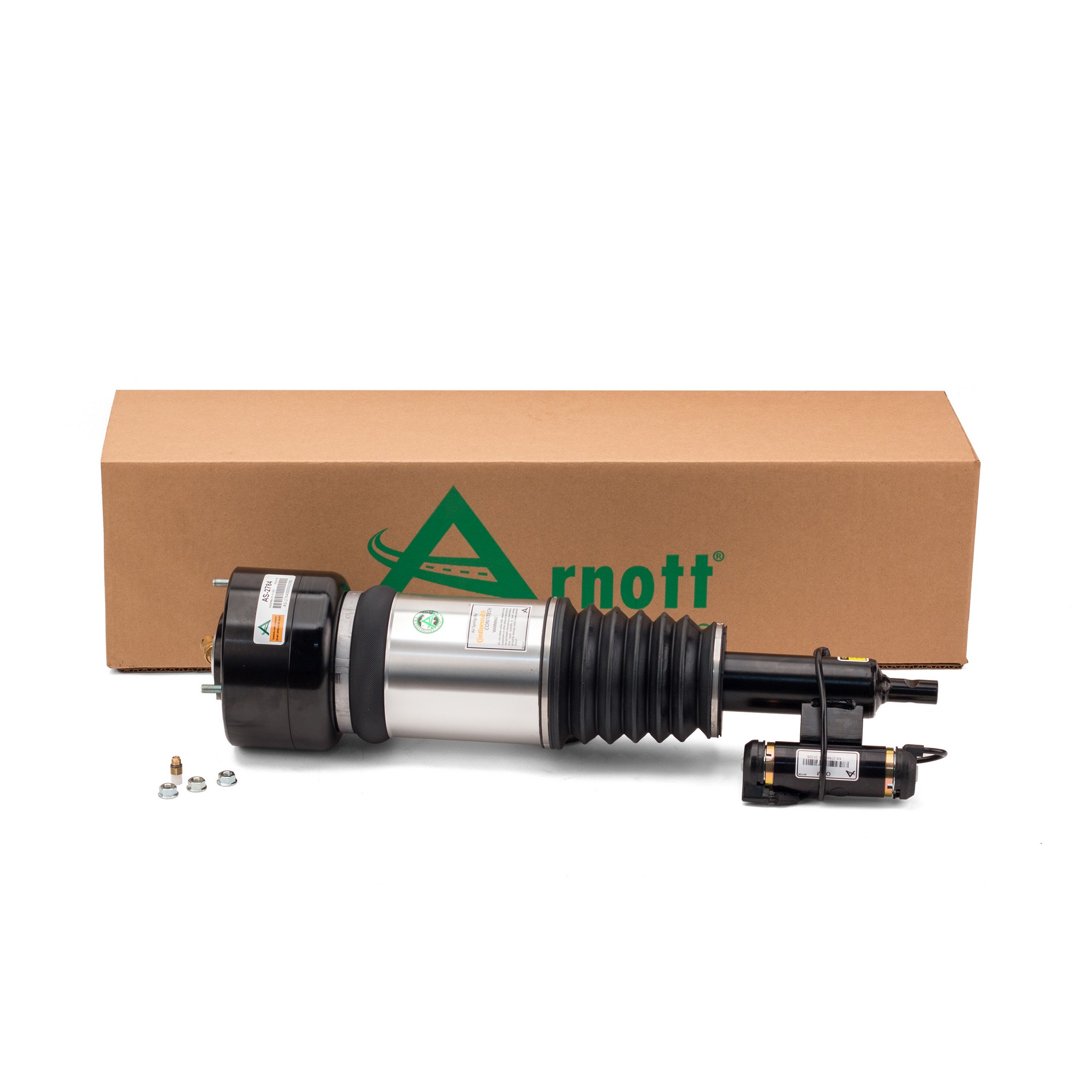

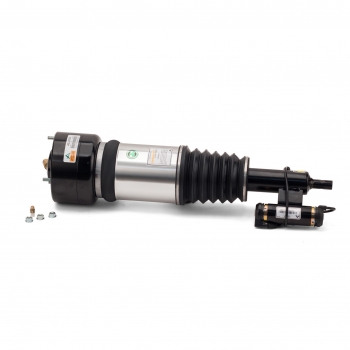

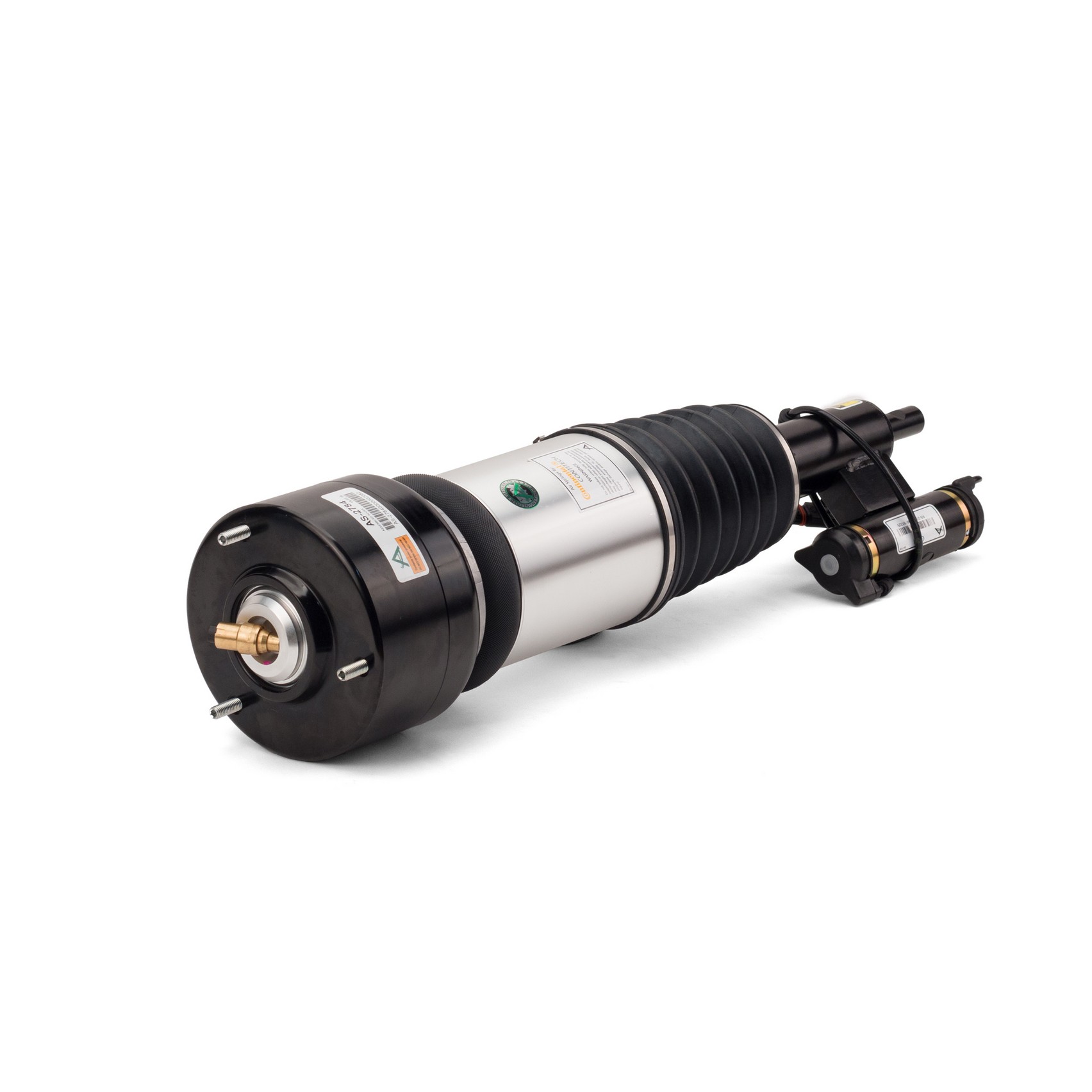

- AS-2784 is a new, Arnott-engineered, aftermarket air suspension strut for the front left-hand side of the 2003-2006 Mercedes-Benz S-Class (W220) W/AIRMATIC W/4MATIC. This new assembly replaces the O.E. strut and features a custom-tuned shock absorber calibrated to restore the vehicle's ride control and performance. The Arnott strut includes a new multi-ply air bladder from Continental ContiTech protected by an aluminum can along with an anodized CNC-machined top mount made from aircraft-quality aluminum. This new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and solenoid along with a dust boot to protect the strut. Features: New Custom-Valved Shock Absorber Multi-Ply ContiTech Air Spring Bladder Pre-Assembled for Easy Installation Detailed Installation Manual Available Designed and Assembled in the USA
| Travel Length (MM) | 165.50639999999999 |
|---|---|
| Compressed Length (MM) | 376.5 |
| Extended Length (MM) | 542 |
| Contents | Air shock assembly; mounting hardware |
| Boot Color | Black |
| Body End Measuring Point | Center eye |
| Internal Damper Type | Hydraulic |
| California Proposition 65 | N/a |
| Coil Over Springs Included | N/a |
| Dust Shield Material | N/a |
| Adjustable | No |
| Adjustable Damping | No |
| Bearing Plate Included | No |
| Lower Mounting Isolator Included | No |
| Spring Seat Included | No |
| Progressive Spring Rate | Progressive |
| Spring Rate Type | Progressive |
| Air Bladder Material | Rubber |
| Shock Absorber Rod End Measuring Point | Shoulder of stud |
| Grade Type | Standard |
| Lower Mount Type | Stud |
| Upper Mount Type | Stud |
| Internal Construction Type | Twin-tube |
| Shock/strut Design | Twin-tube |
| Air Adjustable | Yes |
| Air Bladder | Yes |
| Air Ride Suspension | Yes |
| Boot/dust Shield Included | Yes |
| Gas Charged | Yes |
| Heavy Duty Crimping Rings | Yes |
| Mounting Hardware Included | Yes |
| Protective Aluminum Can | Yes |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | Yes |
| Springs Included | Yes |
| Upper Mounting Isolator Included | Yes |
