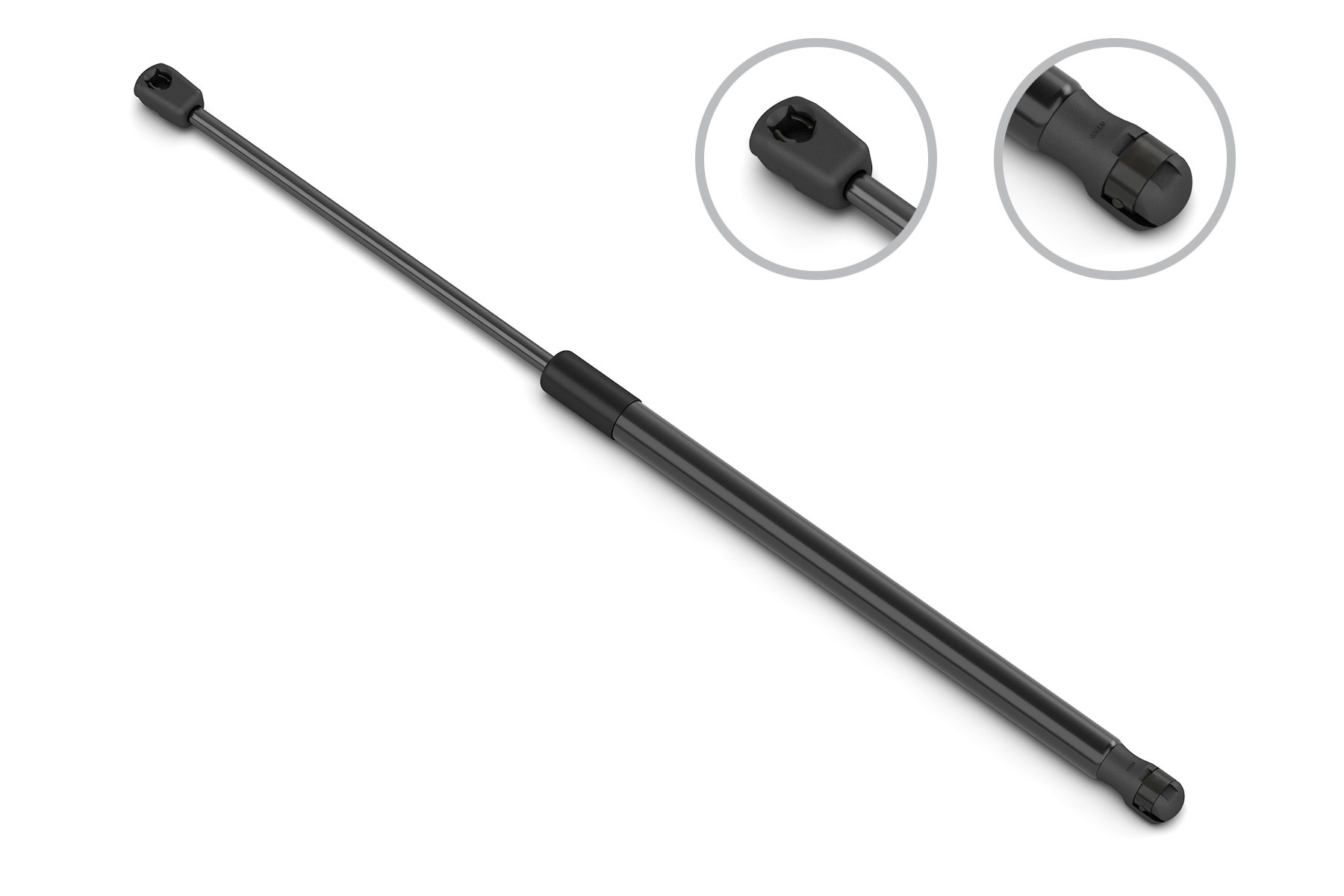

Stabilus® 3B-935963 Liftgate Lift Support
Manufacturer #3B-935963
Stabilus® 3B-935963 Liftgate Lift Support
Manufacturer #3B-935963
$21.42
$29.99
Save $8.57 (29%)
(26) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | 2L3B935963 |
|---|---|
| Brand | Stabilus® |
| Part Name | Liftgate Lift Support |
| Part | # 3B-935963 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Toyota
- LIFTGATE LIFT SUPPORT
- Stabilus Liftgate Lift Support
- A temperature compensating gas charged lift support with dynamic speed control.
- Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
- Internal valve adjusts holding force for cold weather.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
- Lift-O-Mat by Stabilus – Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, leveraging dynamic damping for refined, adaptable performance. Instead of an oil column, this advanced lift support utilizes a longitudinal groove, called a velocity manifold, pressed into the tube wall. This design allows gas to flow around the piston, with the groove’s depth and geometry precisely controlling extension speed to match specific application requirements. Innovative Temperature Compensation: The Lift-O-Mat includes a Temperature Compensating Valve (TCV) inside the tube, managed by a temperature-sensitive bi-metal valve. This valve adjusts gas force based on environmental conditions: in cold weather, it allows extra gas force for enhanced performance, while in warm conditions, it locks away excess force for stability. Smooth, Reliable Operation: The expertly crafted groove gradually narrows toward the end of the stroke, providing a gentle, controlled stop with minimal impact. Made from high-quality materials and tuned for smooth function, the Lift-O-Mat offers OE-level performance and design, making it a versatile choice across industries like automotive and ergonomic equipment. Why Choose Lift-O-Mat? - Dynamic Damping: Gas flows continuously around the piston, regulated by a custom groove for precise extension control. - Highly Tunable: Groove depth and geometry can be customized for each application. - Temperature Compensation: The TCV ensures consistent operation across temperature changes. - Built to Last: Made from durable materials and engineered for long-lasting reliability. Choose Lift-O-Mat by Stabilus for a dynamic damping solution that ensures smooth performance, precise control, and a gentle stop, tailored to your application.
| NonVehicle Specific | N |
|---|---|
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | Dehp |
| Prop 65 Warning | Warning: this product can expose you to chemicals including di(2-ethylhexyl) phthalate (dehp), which is known to the state of california to cause canc |
| Prop 65 Affected | Yes |
| Type | Gas |
| Maximum Force (NW) | 940 |
| End 2 Mount Diameter (MM) | 10.0 |
| End 1 Mount Diameter (MM) | 10.0 |
| Cylinder Outside Diameter (MM) | 22 |
| Inner Shaft Diameter (MM) | 10 |
| Stroke Length (MM) | 166.5 |
| Compressed Length (MM) | 405.5 |
| Extended Length (MM) | 572.0 |
| Maximum Force (LB) | 211 |
| End 2 Mount Diameter (IN) | 0.394 |
| End 1 Mount Diameter (IN) | 0.394 |
| Cylinder Outside Diameter (IN) | 0.866 |
| Inner Shaft Diameter (IN) | 0.394 |
| Stroke Length (IN) | 6.56 |
| Compressed Length (IN) | 15.96 |
| Extended Length (IN) | 22.52 |
| End 2 Material | Nylon |
| End 2 Type | Ball socket |
| End 1 Material | Nylon |
| End 1 Type | Ball socket |
| Mounting Hardware Included | No |
