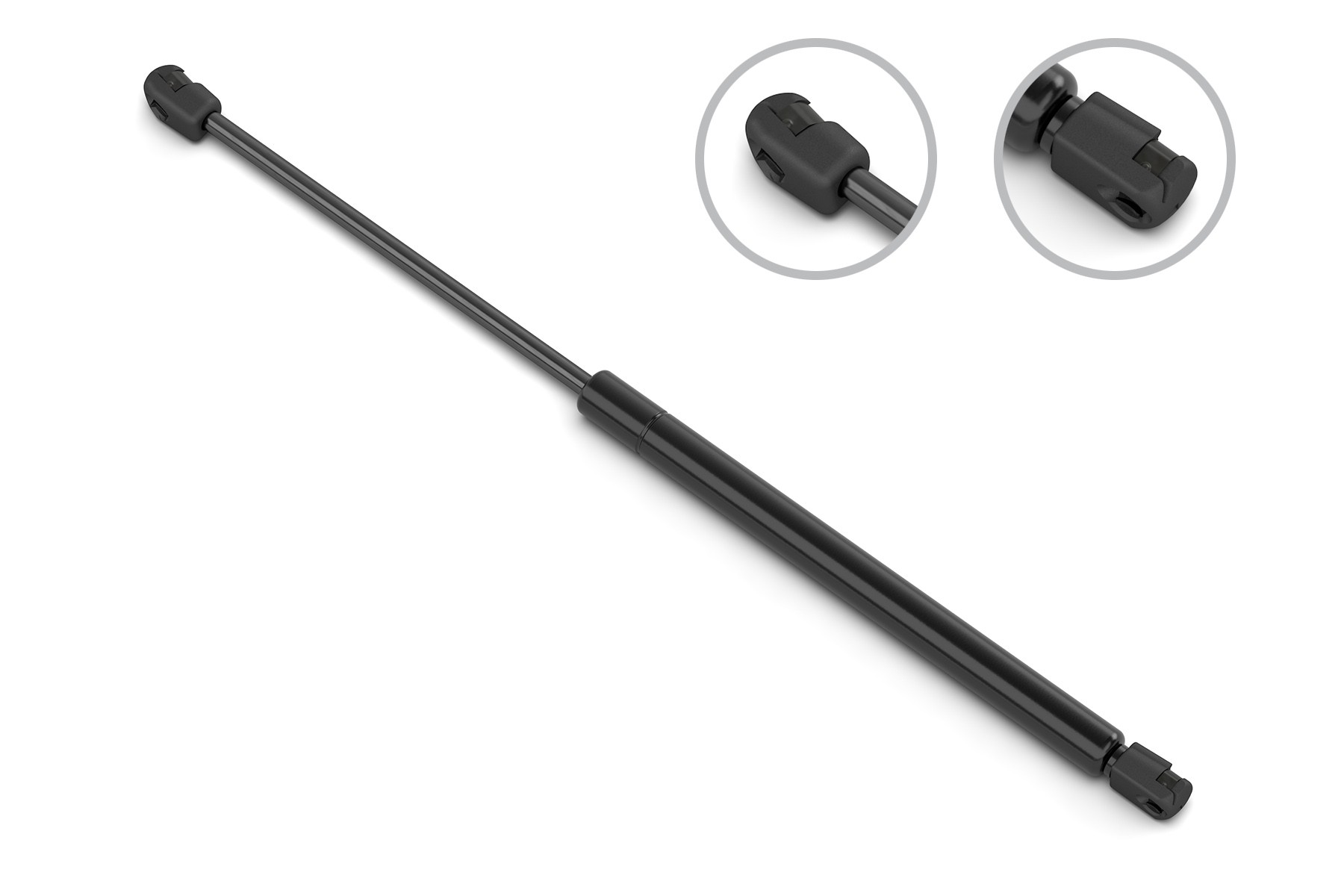

Stabilus® 4B-091099 Back Glass Lift Support
Manufacturer #4B-091099
Stabilus® 4B-091099 Back Glass Lift Support
Manufacturer #4B-091099
$17.28
$24.19
Save $6.91 (29%)
(10) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | 2L4B091099 |
|---|---|
| Brand | Stabilus® |
| Part Name | Back Glass Lift Support |
| Part | # 4B-091099 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Ford
-
Mercury
- BACK GLASS LIFT SUPPORT
- Stabilus Back Glass Lift Support
- A gas charged lift support with dynamic speed control.
- Dynamic damping speed control creates a fluid opening motion.
- No bouncing or jerking during cycling.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
- Lift-O-Mat by Stabilus- Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove—known as a velocity manifold—pressed into the tube wall, allowing gas to flow around the piston. This groove’s depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.
| NonVehicle Specific | N |
|---|---|
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | Dehp |
| Prop 65 Warning | Warning: this product can expose you to chemicals including di(2-ethylhexyl) phthalate (dehp), which is known to the state of california to cause canc |
| Prop 65 Affected | Yes |
| Type | Gas |
| Maximum Force (NW) | 265 |
| End 2 Mount Diameter (MM) | 8.0 |
| End 1 Mount Diameter (MM) | 10.0 |
| Cylinder Outside Diameter (MM) | 18 |
| Inner Shaft Diameter (MM) | 8 |
| Stroke Length (MM) | 180 |
| Compressed Length (MM) | 269.0 |
| Extended Length (MM) | 449.0 |
| Maximum Force (LB) | 60 |
| End 2 Mount Diameter (IN) | 0.315 |
| End 1 Mount Diameter (IN) | 0.394 |
| Cylinder Outside Diameter (IN) | 0.709 |
| Inner Shaft Diameter (IN) | 0.315 |
| Stroke Length (IN) | 7.09 |
| Compressed Length (IN) | 10.59 |
| Extended Length (IN) | 17.68 |
| End 2 Material | Nylon |
| End 2 Type | Ball socket |
| End 1 Material | Nylon |
| End 1 Type | Ball socket |
| Mounting Hardware Included | No |
