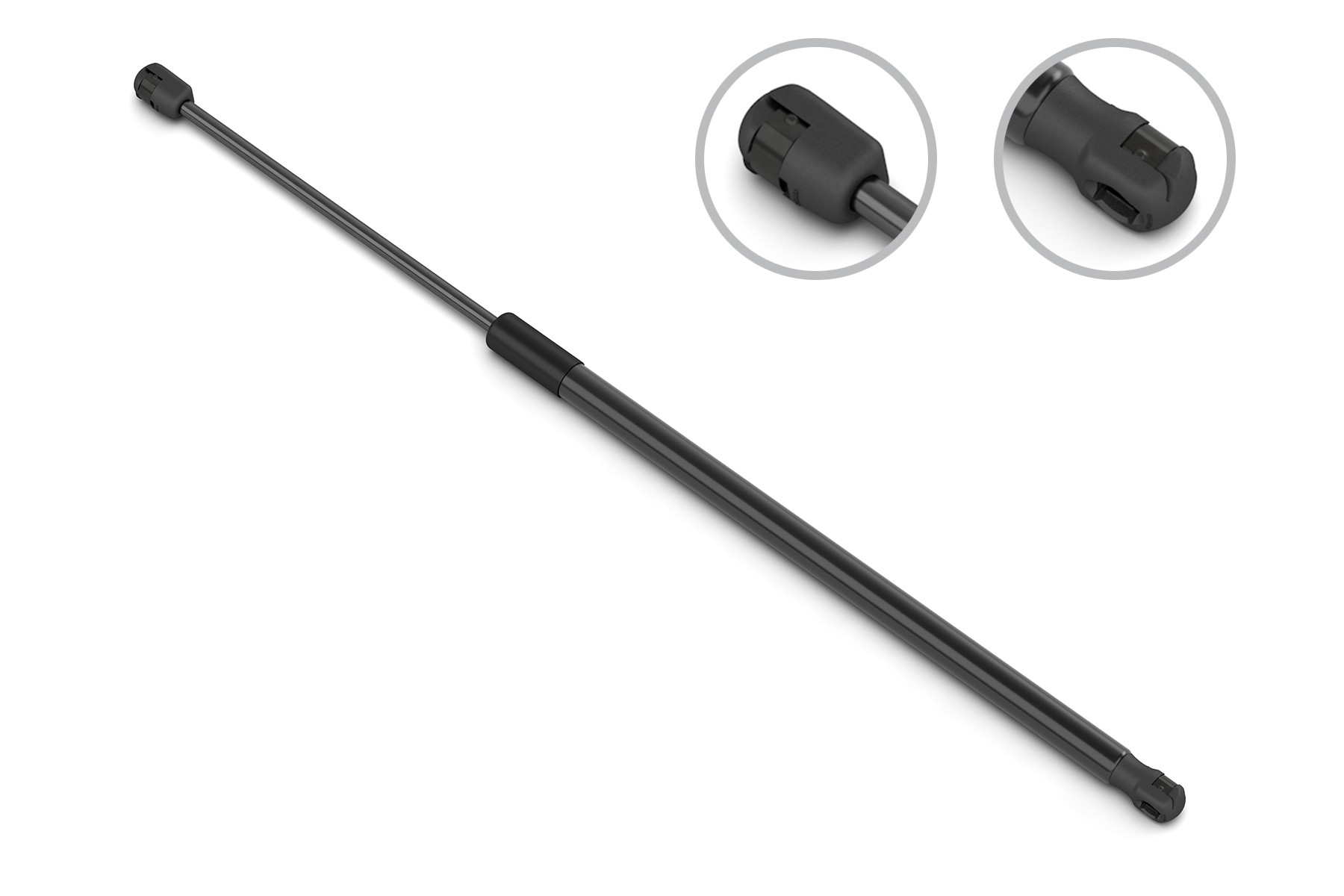

Stabilus® 3D-430690 Hood Lift Support
Manufacturer #3D-430690
Stabilus® 3D-430690 Hood Lift Support
Manufacturer #3D-430690
$14.08
$19.71
Save $5.63 (29%)
(9) In Stock
Get it between Wed, Aug 20 - Fri, Aug 22, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | 2L3D430690 |
|---|---|
| Brand | Stabilus® |
| Part Name | Hood Lift Support |
| Part | # 3D-430690 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Mercedes-benz
- HOOD LIFT SUPPORT (L)
- Stabilus Hood Lift Support (L)
- A gas charged lift support with multiple stopping positions within the stroke.
- Special coil spring supported piston reduces the extension force
- Allows the application to be held open at multiple angles.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
- Interstop by Stabilus- Precision Control with Dynamic Damping. Interstop by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. This advanced lift support utilizes a longitudinal groove—known as a velocity manifold—pressed into the tube wall, allowing gas to flow around the piston. The unique dynamic damping groove can be segmented to create predefined stopping points along the stroke, enabling precise control over extension movement. Special Coil Spring Supported Piston Package A special coil spring supported piston package is integrated into the design to reduce extension force, allowing the extension movement of the lift support to be easily stopped at desired points. Designed for Smooth Operation The groove profile is expertly crafted to ensure gentle, controlled stops with minimal impact, enhancing overall usability. Built from high-quality materials and fine-tuned for smooth, reliable function, Interstop offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Interstop? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Predefined Stopping Points: Segmented groove design enables users to stop at specific points along the stroke. - Special Coil Spring Package: Reduces extension force for easier stopping of the lift support. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Interstop by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and effortless control every time.
| NonVehicle Specific | N |
|---|---|
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | Dehp |
| Prop 65 Warning | Warning: this product can expose you to chemicals including di(2-ethylhexyl) phthalate (dehp), which is known to the state of california to cause canc |
| Prop 65 Affected | Yes |
| Type | Gas |
| Maximum Force (NW) | 270 |
| End 2 Mount Diameter (MM) | 10.0 |
| End 1 Mount Diameter (MM) | 10.0 |
| Cylinder Outside Diameter (MM) | 18 |
| Inner Shaft Diameter (MM) | 8 |
| Stroke Length (MM) | 250.5 |
| Compressed Length (MM) | 368.0 |
| Extended Length (MM) | 618.5 |
| Maximum Force (LB) | 61 |
| End 2 Mount Diameter (IN) | 0.394 |
| End 1 Mount Diameter (IN) | 0.394 |
| Cylinder Outside Diameter (IN) | 0.709 |
| Inner Shaft Diameter (IN) | 0.315 |
| Stroke Length (IN) | 9.86 |
| Compressed Length (IN) | 14.49 |
| Extended Length (IN) | 24.35 |
| End 2 Material | Nylon |
| End 2 Type | Ball socket |
| End 1 Material | Nylon |
| End 1 Type | Ball socket |
| Mounting Hardware Included | No |
