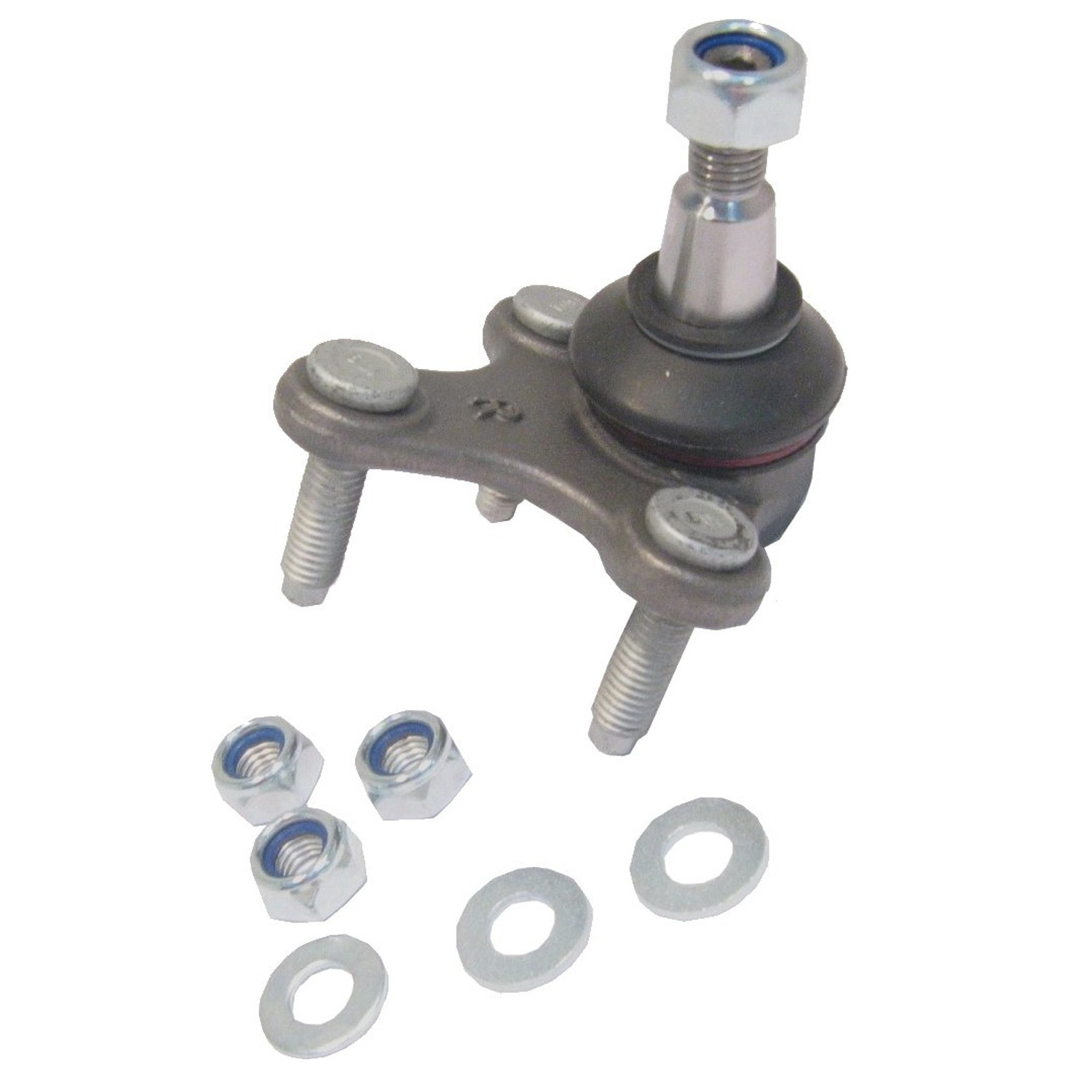

Delphi® TC1317 Suspension Ball Joint
Manufacturer #TC1317
Delphi® TC1317 Suspension Ball Joint
Manufacturer #TC1317
$18.12
$25.37
Save $7.25 (29%)
(32) In Stock
Get it between Thu, Aug 21 - Mon, Aug 25, 2025
Does This Fit? Add Vehicle to Guarantee Fit!
Add vehicleFast Shipping
We ship fast so you can get on the road that much faster100% Safety
Only secure payments| SKU | DETC1317 |
|---|---|
| Brand | Delphi® |
| Part Name | Suspension Ball Joint |
| Part | # TC1317 |
| Quantity Per Vehicle | 1 |
| Pack of | 1 |
| Condition | New |
-
Audi
-
Volkswagen
- Ball Joint
- Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
| Position(s) | Front right lower |
|---|---|
| California Proposition 65 | Warning: this product can expose you to chemicals including ethylene thiourea, which is known to the state of california to cause cancer and birth defects or other reproductive harm. for more information go to www.p65warnings.ca.gov. |
| Material | Steel |
| Maximum Outside Diameter (IN) | 3.622 |
| Maximum Outside Diameter (MM) | 92.00 |
| Length (MM) | 104.00 |
| Length (IN) | 4.090 |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width (MM) | 92 |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length (IN) | 1.772 |
| Mounting Bolt Length (MM) | 45.00 |
| Washers Included | Yes |
| Height (IN) | 3.583 |
| Height (MM) | 91.00 |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length (IN) | 0.689 |
| Stud Thread Length (MM) | 17.5 |
| Stud Type | Threaded |
| Mounting Type | Bolt-in |
| Distance Between Mounting Holes (MM) | 43.90 |
| Distance Between Mounting Holes (MM) | 91.40 |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter (IN) | 0.492 |
| Mounting Bolt Shank Diameter (MM) | 12.50 |
| Mounting Bolt Head Diameter (IN) | 0.669 |
| Mounting Bolt Head Diameter (MM) | 17.00 |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch (MM) | 1.5 |
| Mounting Bolt Thread Length (IN) | 1.024 |
| Mounting Bolt Thread Length (MM) | 26.00 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter (IN) | 0.61 |
| Stud Tapered End 2 Diameter (MM) | 15.5 |
| Stud Tapered End 1 Diameter (IN) | 0.795 |
| Stud Tapered End 1 Diameter (MM) | 20.2 |
| Stud Thread Pitch (MM) | 1.5 |
